> Mini computer>Case and box>Single enclosure for TTGO T-display S3 ESP32-S3 development board
Single enclosure for TTGO T-display S3 ESP32-S3 development board View larger
TTGO by LilyGO

TTGO-BOITIER-DISPLAYS3-L930-2641

New product

China

Single enclosure for TTGO T-display S3 ESP32-S3 development board

rating No review at the moment

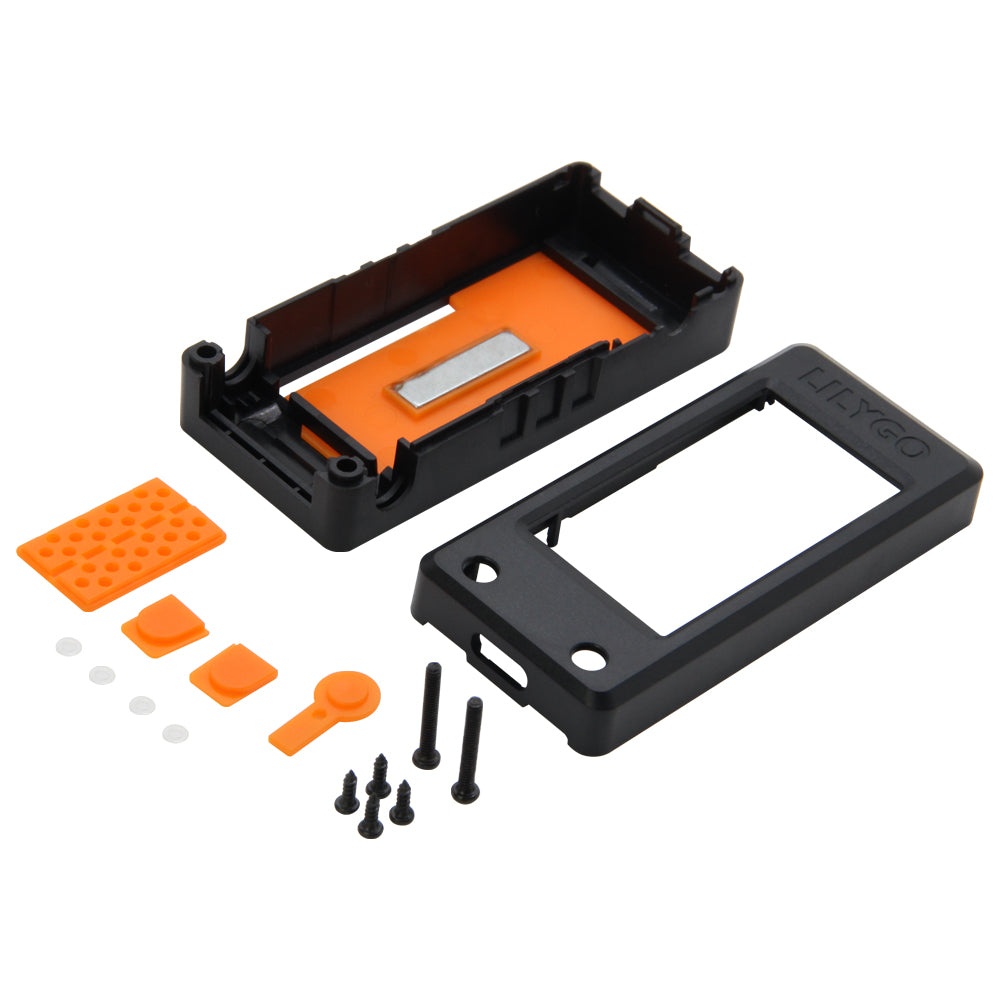

Case for TTGO T-display S3 screen and development board.

Supplied with: 1 LILYGO case for TTGO T-display S3.

More details

4,58 € tax excl.

Out of stock, available within 1 month

Data sheet

ChipsetESPRESSIF-ESP32 240MHz
FLASHQSPI flash 4MB
SRAM520 kB SRAM
USB to TTLCP2104
InterfaceUART, SP, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC
DisplayIPS ST7789V 1.14 Inch
Working voltage2.7V-4.2V
Working currentAbout 67MA
Sleep currentAbout 350uA
Working temperature range-40℃ ~ +85℃
Size&Weight51.52*25.04*8.54mm(7.81g)
Power SupplyUSB 5V/1A
Charging current500mA
Battery3.7V lithium battery (not included)
JST Connector2Pin 1.25mm
USBType-C
Standard WI-FIFCC/CE-RED/IC/TELEC/KCC/SRRC/NCC（esp32 chip）
Protocol WI-FI802.11 b/g/n
Frequency range2.4GHz~2.5GHz (2400~2483.5Mhz)
Transmit Power20-22dBm - 100-158mW
Communication distance300m in open space
Protocol BluetoothMeet bluetooth v4.2BR/EDR and BLE standard
SensitivityWith -97dBm
Wi-Fi ModeStation/SoftAP/SoftAP+Station/P2P
SecurityWPA/WPA2/WPA2-Enterprise/WPS
WIFI EncryptionAES/RSA/ECC/SHA
Firmware upgradeUART download/OTA
Software DevelopmentSupport cloud server development / SDK
Network protocolIPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
OSFreeRTOS

Schema diagram TTGO ESP32 Arduino

module dev esp32 ttgo
