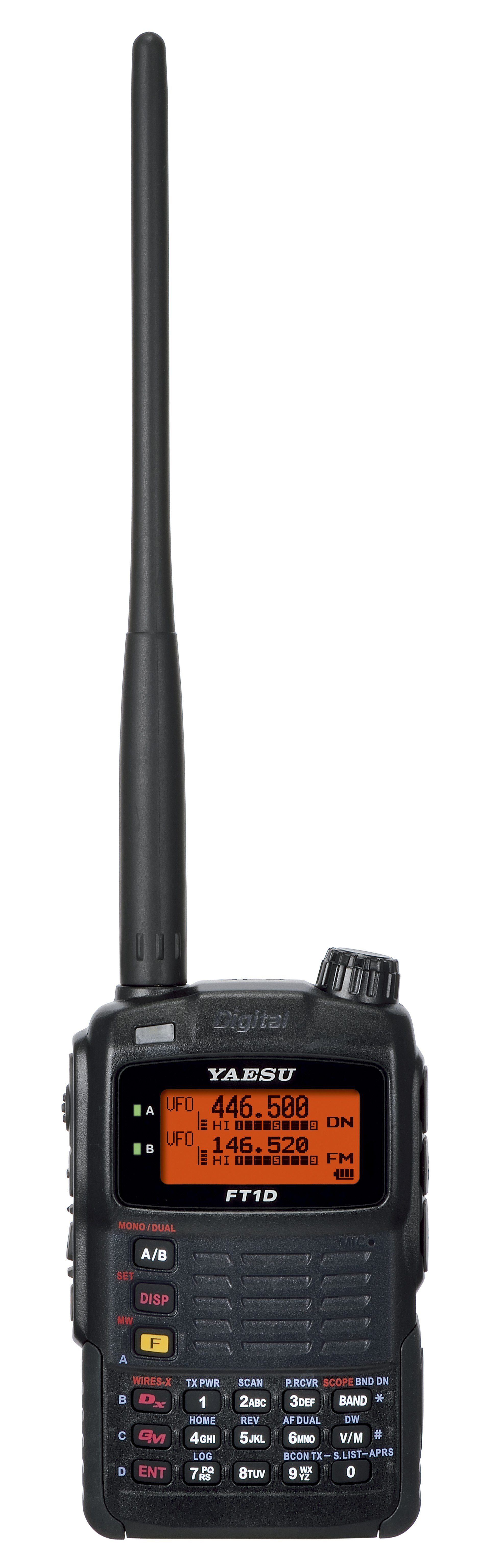

YAESU FT1XDE Dual-band 144/430Mhz FM & C4FM Fusion + GPS

No review at the moment

New version of the famous FT1D, the Yaesu FT1XDE is a handheld transceiver dual band 144/430 MHz for FM conventional mode and new digital C4FM mode for Yaesu system Fusion.

- Enhanced audio digital quality, more clear and natural (in wide mode)
- Integrated GPS receiver
- Broadband Receiver from 504 kHz to 999.900 MHz FM and AM
- Allows to transmit voice and data simultaneously also with GPS data
- Automatic signal detection FM analog / digital C4FM
- Transmission up to 9600 bps in C4FM
- 1266 channels, DTMF, CTCSS, DCS, vibrator
- Storage SD memory card (not supplied)
- Maximum Power 5 watts
- 2200mAh Battery
- IPX5 water resistant projection
- Snapshot function (with MH-85A11U not included)

Comes with: Handheld Yaesu FT1XDE, 2200mAh battery, USB connection cable (SCU-19 PC), belt clip (SHB-11), dual-band antenna, charger, manual in english.

More details

Data sheet

Specifications Yaesu FT1XDE FM & C4FM

	Frequency covered	Type of frequency
Frequency Range A (reception)	0.5 - 1.8 MHz	AM Radio
	1.8 - 30.0 MHz	SW Radio
	30 - 76 MHz	50MHz Radio
	76 - 108 MHz	FM Radio
	108 - 137 MHz	Air Band
	137 -144 MHz	144MHZ HAM
	174 - 222 MHz	VHF Band
	222 - 420 MHz	GEN1
	420 -470 MHz	430 MHz HAM
	470 -800 MHz	UHF Band
	800 -999 MHz	GEN2 Cellular Blocked US Model

B (Sub Band RX)	108- 137 MHz	Air Band
	137 - 174 MHz	144 MHz HAM
	174 - 222 MHz	VHF Band
	222 - 420 MHz	GEN1
	420 - 470 MHz	430 MHz HAM
	470 -580 MHz	UHF Band
Transmitter - TX	144- 146 MHz	European Version

	430 - 440 MHz	European Version

Channel Steps	5,6.25,8.33, 9 KHz	8.33KHz Airband only; 9KHz AM only
	10,12.5,15,20 KHz
	25,50, 100 KHz
Frequency Stability	±2.5ppm	-20°C to +6°C (-4°F to +60°F)
Emission Type	F1D,F2D,F3E,F7W	F7W - C4FM
Supply Voltage	Nominal 7.4VDC	-VE GND ( Negative Ground
Operating Voltage range	4V - 14V	-VE GND with EXT DC JACK
	11V - 16V	-VE GND with EXT DC JACK with E-DC-5B
	7.4V DC	-VE GND
Current Consumption Receiver:	150mA	Mono Band Receive
	220mA	Dual Band Receive
	100mA	Mono Band Receive - Standby Mode
	150mA	Dual Band Receive - Standby Mode
	45mA	Mono Band RX, STBY, Saver Ratio 1:5
	45mA	Dual Band RX, STBY, Saver Ratio 1:5
	+30mA	GPS ON
	+65mA	Digital Mode on
	600μA	Auto Power Off mode
Transmitter:	1.7A	5W TX 144MHz 7.4V DC
	2.0A	5W TX 430MHZ 7.4V DC
Operating Temperature	-20°C to +6°C	-4°F to +60°F
Case Size	60(W) x 95(H) x 28(D) mm	2.4" x 3.7" x 1.1" w/o knob, Ant or belt clip
Weight	265g (9.35oz)	excluding FNB-101Li and Antennae

*Transmitter*
RF Powwer Output	5W	@7.4VDX or EXT DC
Modulation Type	F1D, F2D, F3E	Variable Reactance Modulation
	F7W	4 Level FSK C4FM
Spurious Emission	At least 60dB below	@TX Power level Hi, L3, L2
	At least 50dB below	@TX Power level L1

*Receiver*
Circuit Type	AM, NBFM	Double Conversion Superhet
	AM Airband/FM Broadcast	Singel Conversion Superhet
Intermediate Frequencies	1st IF 47.25MHz	AM, NBFM A Band
	1st IF 46.35MHz	AM, NBFM B Band
	2nd IF 450 KHz	AM, NBFM
	1sr IF 130 KHz	AM/FM Radio

Sensitivity	3μV for 10dB SN	0.5 - 30 MHz @AM
	0.3μV TYP for 12dB SINAD	30 - 54 MHz @NFM
	1μV TYP for 12dB SINAD	54 - 76 MHz @NFM
	1.5μV TYP for 12dB SINAD	76 - 108 MHz @NFM
	1.5μV TYP for 10dB SN	108 - 137 MHz @ AM
	0.2μV for 12dB SINAD	137 - 140 MHz @NFM
	0.16μV for 12dB SINAD	140 -150 mhZ @NFM
	0.2μV for 12dB SINAD	150 -174 MHz @NFM
	1μV for 12dB SINAD	174 - 222 MHz @NFM
	0.5μV for 12dB SINAD	300 -350 MHz @NFM
	0.2μV for 12dB SINAD	350 -400 MHz @NFM
	0.16μV for 12dB SINAD	400 -470 MHz @NFM
	1.5μV for 12dB SINAD	470 -540 MHz @NFM
	3μV for 12dB SINAD	800 - 999MHz @NFM Cellular Blocked USA
	0.19μV TYP for BER1%	Digital Modes
Selectivity	NFM, AM	12 KHz / 35 KHz ( -6dB / -60dB)
AF Output	200mW	8Ω for 10% THD @ 7.4VDC
	400mW	4Ω for 10% THD @ 7.4VDC
