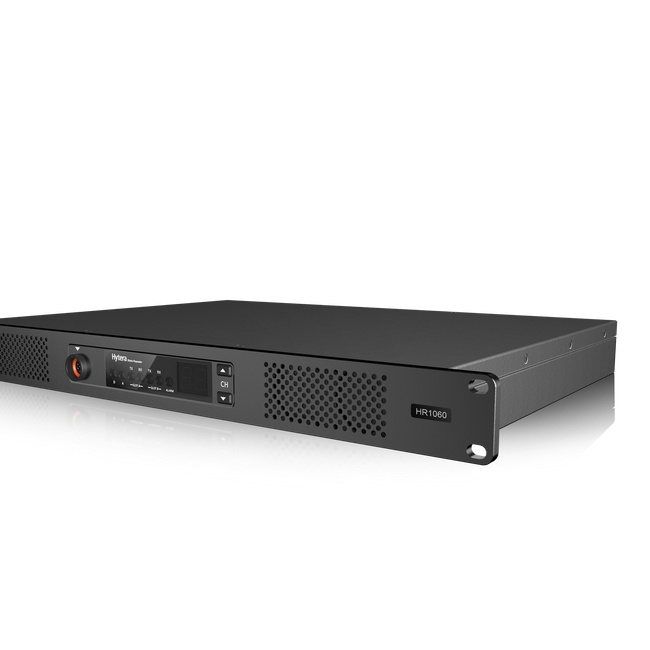

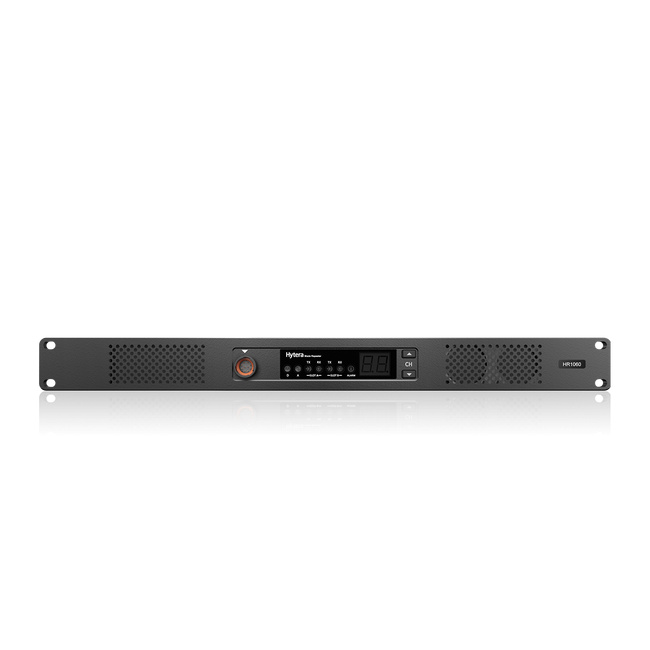

HYTERA HR1065 VHF/UHF DMR Relay 136-470 Mhz 50W View larger

Hytera

New product

China

HYTERA HR1065 VHF/UHF DMR Relay 136-470 MHz or 400-470MHz 50W

rating No review at the moment

Hytera HR1065 Professional DMR Repeater in VHF 136-174 MHz or UHF 400-470 Mhz version with Integrated Router and SIP Gateway functionality

1U height for an ultra-compact design that optimises installation space.

Web-based repeater management platform, facilitating real-time configuration, updating and diagnostics via a browser, optimal for remote management

Delivered with : Hytera HR1065 relay, power cable and manual.

More details

2 749,00 € tax excl.

Out of stock, available within 1 to 2 months

  • VHF
  • UHF

Data sheet

Frequency range

UHF: 400-470 MHz

VHF: 136-174 MHz

Channels and zones

Channel capacity: 1024

Zone capacity: 1

Channels per zone: 64

Channel spacing

Analogue: 12.5kHz/20kHz/25kHz

Digital: 12.5kHz

Supply voltage

DC +13.6 V ± 15% AC 100-240 V

Current consumption (DC)

DC standby: ≤0.9 A / AC: ≤0.35 A

DC transmission: ≤12 A / AC: ≤1.2 A

Frequency stability

±0.5 ppm

Antenna impedance

50 Ω

Duty cycle

100%

Dimensions H x W x D

44 mm x 483 x 366 mm

Weight

5.8 kg

Ethernet port

1 x RJ45 Ethernet port (standard version)

2 x RJ45 Ethernet port (enhanced version)

USB port

1 x USB port (enhanced version)

Networking

Single-site repeater mode, multi-site IP mode

Digital protocol

ETSI-TS102 361-1,-2,-3

Receiver

Sensitivity

Analogue: 0.18µV (12dB SINAD)

Analogue: 0.16µV (12dB SINAD) (typical)

Digital: 0.18µV / BER 5%.

Adjacent channel selectivity

TIA-603: 65dB @12.5kHz / 75dB @20/25kHz

ETSI: 60dB @12.5kHz / 70dB @20/25kHz

Intermodulation

TIA-603 : 75 dB

ETSI : 70 dB

Noise response rejection

TIA-603: 80 dB

ETSI: 80 dB

Blocking

90 dB

Hum and noise

40 dB at 12.5 kHz

43 dB at 20 kHz

45 dB at 25 kHz

Conducted emissions

@≤1GHz: ≤ -57 dBm

@>1GHz : ≤ -47 dBm

Nominal audio distortion

<3%

Audio response

+1 to -3 dB

Transmitter

RF output power

5-50 W

FM modulation

11K0F3E @12.5kHz

14K0F3E @20kHz

16K0F3E @25kHz

4FSK digital modulation

12.5kHz data only: 7K60FXD

12.5kHz data and voice: 7K60FXW

Conduction/radiation transmission

operation : -36dBm @<1GHz; -30dBm @>1GHz

standby: -57dBm @<1GHz, -47dBm @>1GHz

Modulation limitation

±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz

FM hum and noise

40 dB at 12.5 kHz; 43 dB at 20 kHz; 45 dB at 25 kHz

Adjacent channel power

60 dB at 12.5 kHz; 70 dB at 20/25 kHz

Audio response

+1 to -3 dB

Audio distortion

<3%

Digital vocoder type

AMBE+2™

Environment

Operating temperature range

From -30°C to +60°C

Storage temperature

From -40°C to +85°C
