Manufacturer: RigExpert France

Reference: RIGEXPERT-AA55-ZOOM-BT-1277

Condition: New product

Country of origin:

Ukraine

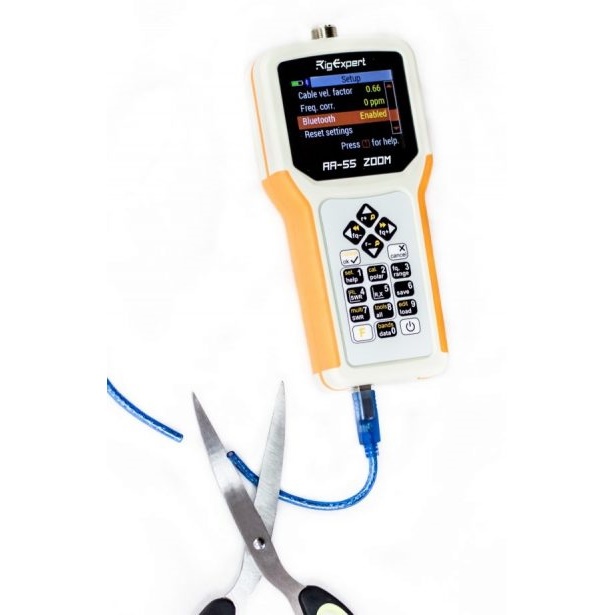

RigExpert AA-55 ZOOM Bluetooth Analyzer 60 kHz to 55 MHz

No review at the moment

The RigExpert AA-55 ZOOM Bluetooth is designed to measure SWR (Standing Wave Ratio), return loss, cable loss, and other parameters of cable and antenna systems in the range from 60 kHz to 55 MHz .

A built-in ZOOM function makes graphical measurements particularly effective.

The following tasks are easily accomplished using this analyzer:

Quick check of an antenna, tune an antenna to resonance, comparison of the characteristics of an antenna before and after a particular event (rain, hurricane, etc.), realization of coaxial stubs or measurement of their parameters, cable test and fault location, measurement of cable loss and characteristic impedance, and measurement of capacitance or inductance of reactive loads.

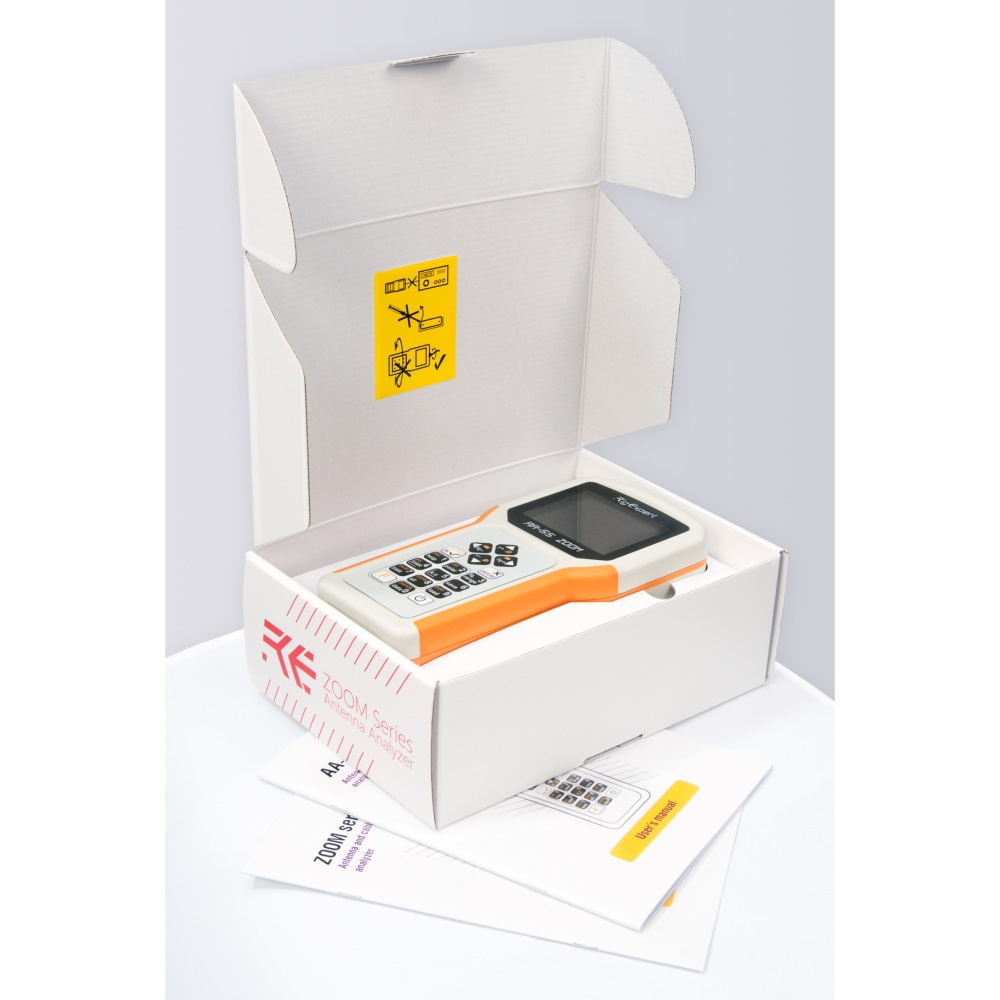

Delivered with: 1 Rig Expert AA-55 ZOOM Bluetooth, 1 soft case, 1 USB cable, 1 user manual, 1 set of alkaline batteries.

More details

Download

AntScope2 Windows software

44.61M

Flashtool RigExpert Software

20.88M

User manual AA-55 ZOOM

2.21M

Data sheet

Frequency range: 0.06 to 55 MHz
Frequency input: 1 kHz resolution
Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600 - Ohm systems
SWR measurement range: 1 to 100 in digital mode, 1 to 10 in graphics mode
SWR display: digital or analog indicator
R and X range: 0 ... 10000, -10000 ... 10000 in digital mode,
0 ... 1000, -1000 ... 1000 in graphics mode.

Display modes:
- TOS at one or more frequencies
- SWR, return loss, R, X, Z, L, C and phase angle at a single frequency.
- TOS graph, 100 points
- R, X diagram, 100 points
- Smith diagram, 100 points
- Return loss table, 100 points
- Cable tools (loss and characteristic impedance)

Optional calibration at open short load.
Memory :
- 10 locations to save measurement results

RF output:
- Connector type: UHF Female (SO-239)
- Output signal shape: square, 0.06 to 55 MHz
- Output power: +13 dBm (at a load of 50 Ohms)

Food :
- 2 alkaline batteries of 1.5 V, type AA or 2 Ni-MH batteries of 1.2 V, type AA *.
- Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used.
- When the analyzer is connected to a PC or to a DC adapter with USB socket, it is powered by these sources.

Interface:
- 320 × 240 color TFT screen
- 6 × 3 keys on the waterproof keyboard
- Multilingual menus and help screens
- USB connection to a personal computer

Bluetooth specification v.2.0, Class B. Compatible with Android OS ver. 4.0 and above.
Dimensions: 103 mm x 207 mm x 37 mm
Operating temperature: 0 to 40 ° C
Weight: 310 g without batteries
2 years warranty
CE standards

The RigExpert AA-55 ZOOM Bluetooth is made in Ukraine.

* Batteries are not supplied with the analyzer.

Operation

The structure diagram of the Rig Expert AA55 ZOOM Bluetooth solution:

how-it-works

The "brain" of the analyzer is a 32-bit STM RISC microcontroller. It controls an Si5351 PLL chip operating at 500 MHz and generating two sinusoidal signals. The two signals are filtered by a low pass filter and then pass through pulse shapers, producing two square signals with CMOS levels.

The USB interface is used to connect the analyzer to the PC. The analyzer uses internal Flash memory to store measurement results (10 memory locations).

Detail view

Diagram of the resistive bridge and its connection to the mixer:

The switch which is controlled by the central unit feeds the signal from the certain side of the bridge to the mixer chip. When the load is fully active and its resistance is 50 Ω, the bridge is balanced and the switch emits the same signal in both positions. This eliminates the need to calibrate the analyzer, and also gives very good accuracy around SWR = 1.
