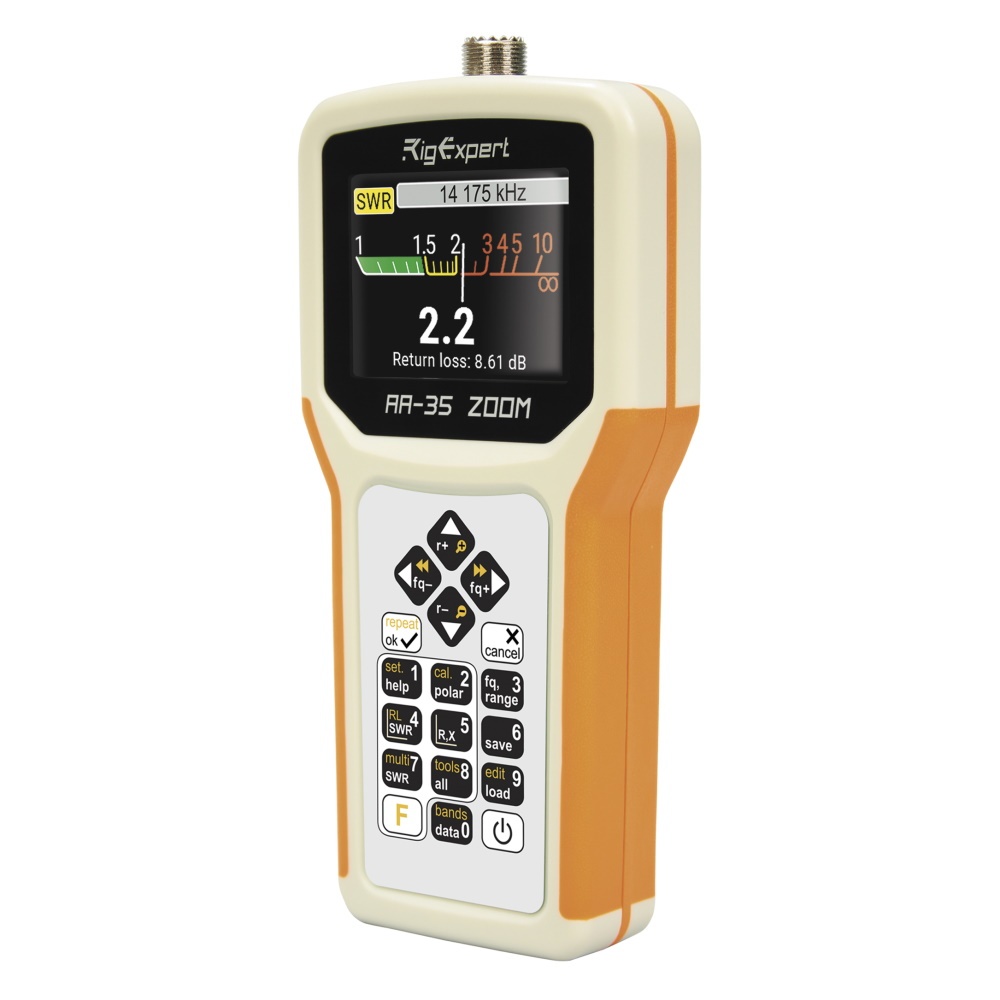

RigExpert AA-35 ZOOM 60 kHz to 35 MHz Analyzer

No review at the moment

The RigExpert AA-35 ZOOM is a portable, self-calibrating analyzer designed to measure SWR (standing wave ratio), return loss, cable loss, from 60 kHz to 35 MHz , with a capacity zoom.

Frequency range: 0.06 to 35 MHz
Frequency input: 1 kHz resolution
Measurement for 25, 50, 75 and 100 Ohm systems
SWR measurement range: 1 to 100 in digital mode, 1 to 10 in graphics mode
SWR display: digital or analog indicator

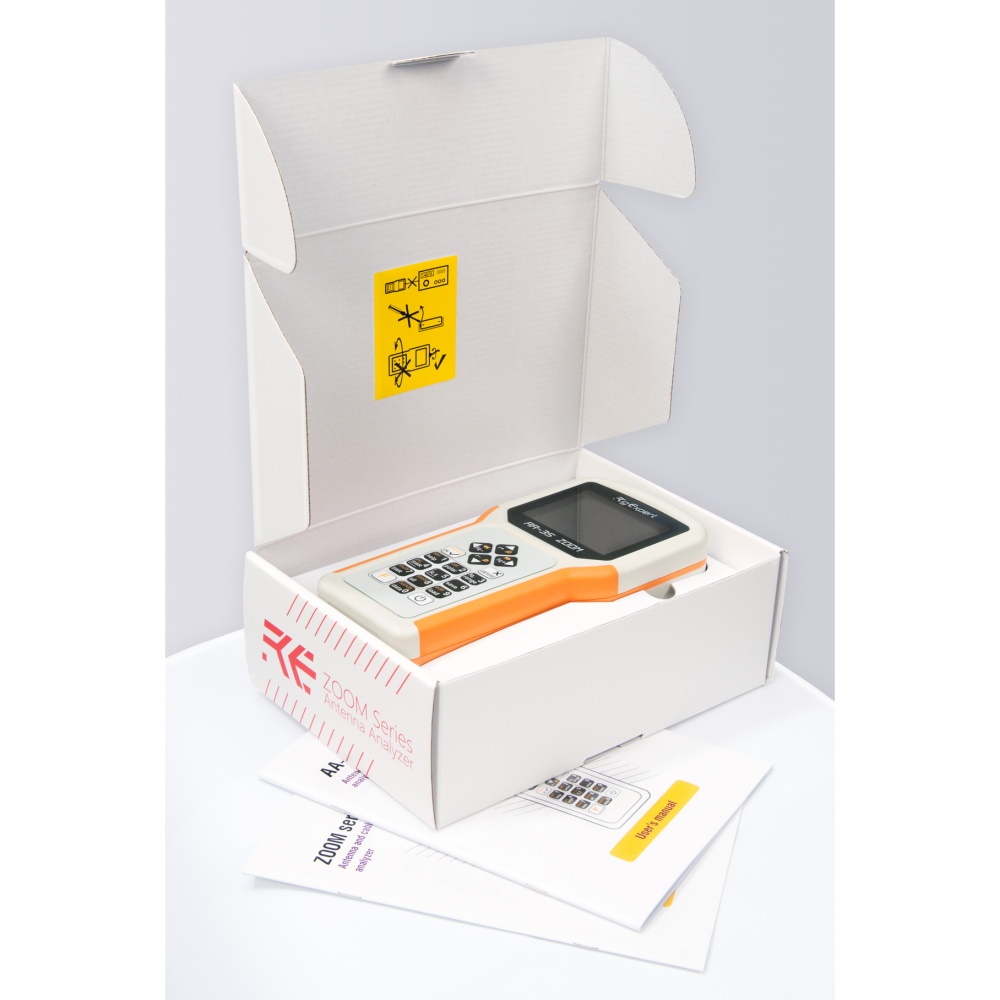

Supplied with: 1 ZOOM Expert AA35 Rig, 1 soft case, 1 USB cable, 1 user manual, 1 set of alkaline batteries.

More details

Download

AntScope2 Windows software

44.61M

Flashtool RigExpert Software

20.88M

Manuel utilisation AA-35 ZOOM

1.53M

Data sheet

Display modes:
Single frequency SWR
SWR, return loss, R, X, Z, L, C and phase angle at a single frequency.
TOS graph, 100 points
R, X, 100 point graph
R and X range: 0 to 10,000, -10000 to 10,000 in digital modes, 0 to 1000, -1000 to 1000 in graphics modes

Memory :
10 locations to save measurement results

RF output:
Connector Type: UHF Female (SO-239)
Output signal shape: square, 0.06 to 35 MHz
Output power: +13 dBm (at a 50 Ohm load)

Food :
Two 1.5 V alkaline batteries, type AA
Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used.
When the analyzer is connected to a PC or to a DC adapter with USB socket, it is powered by these sources.

Interface:
320 × 240 color TFT display
6 × 3 key waterproof keyboard
Multilingual menus and help screens
USB connection to a personal computer

Dimensions: 103 mm x 207 mm x 37 mm
Operating temperature: 0 to 40 ° C
Weight: 310 g without batteries
2 years warranty
CE standards

The Rig-Expert AA-35 ZOOM is made in Ukraine.
