LiteVNA64 Antenna Analyser 50KHz to 6.3GHz 90dB

View larger

Display all pictures

Manufacturer: RF KONNECT

Reference: NANO-LITEVNA64-2730

Condition: New product

Country of origin:

China

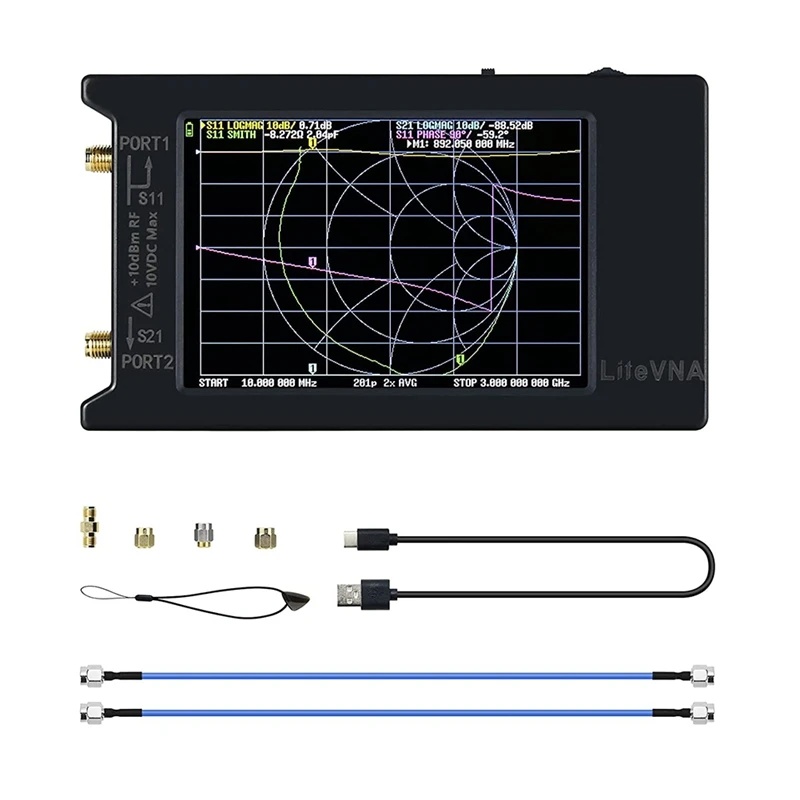

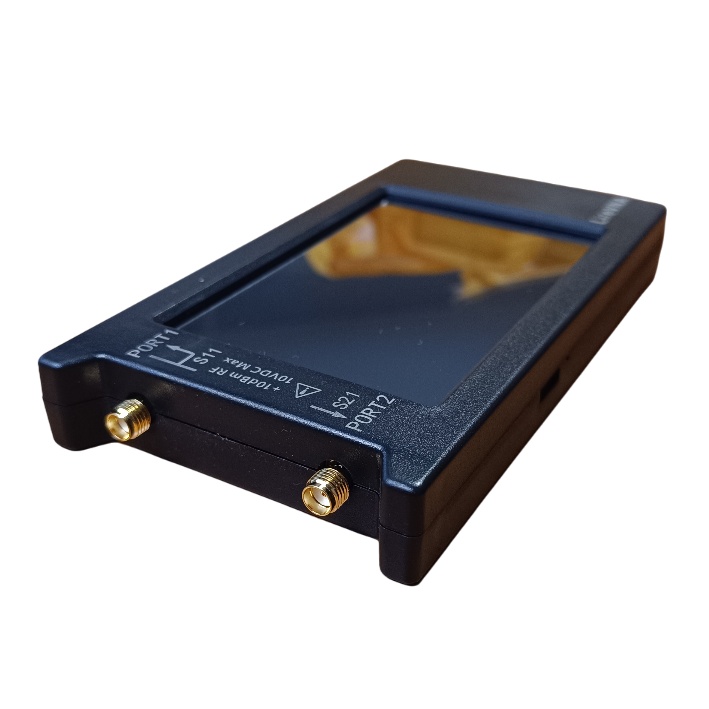

LiteVNA64 VNA antenna analyser from 50KHz to 6.3GHz

Read the review

Average rating: 5/5 Number of reviews: 1

The LiteVNA64 is a touch-sensitive Vector Network Analyser (VNA) that offers advanced performance for HF, VHF, and UHF frequency testing, ranging from 50 KHz to 6.3 GHz.

This is a significant upgrade from the NanoVNA, with notable improvements in terms of background noise reduction and interference elimination, especially when using external power supplies.

With a user interface compatible with that of the NanoVNA and an accelerated sweep speed for faster, more accurate measurements, the LiteVNA-64 is suitable for a wide range of applications, including amateur radio communications, the Internet of Things, and frequency testing for 5 GHz and 5.8 GHz WiFi equipment.

Scope of delivery: 1 LiteVNA64, 1 SMA calibration kit, 1 USB cable, 2 30cm SMA MALE-MALE RF cables, 1 SMA female-female connector.

More details

Data sheet

Frequency range: 50 kHz - 6.3 GHz
Dynamic range: 90 dB (<3GHz) 50 dB (≥3GHz)
S11 noise floor: <-50 dB (<3GHz) <-40 dB (≥3GHz)
Frequency stability: <0.5ppm
Scan rate: >550ps
Scan points: 10-1001 points (device) 1-1024 points (USB)
Display: 3.95" TFT LCD touch screen (480x320)
Power supply: 2000 mAh Li-polymer battery (included)
MicroSD slot
can be used from a PC/phone (android)

The LiteVNA-64 is an ideal choice for professionals and hobbyists looking for a portable, efficient and reliable vector network analyser capable of handling complex tests in a variety of RF environments and applications.
