DeepVNA 101 VNA Antenna Analyser 10KHz to 1.5GHz - Deepelec

View larger

Display all pictures

Manufacturer: Deepelec

Reference: DEEPELEC-DEEPVNA-2706

Condition: New product

Country of origin:

China

DeepVNA 101 VNA Antenna Analyser 10KHz to 1.5GHz - Deepelec

Read the 2 reviews

Average rating: 5/5 Number of reviews: 2

The DeepVNA 101 is Deepelec's latest model in the field of antenna and vector network analysers (VNA), with frequency coverage for measurements from 10 KHz to 1.5 GHz.

This model is the optimised version of the NanoVNA-F with the following improvements:

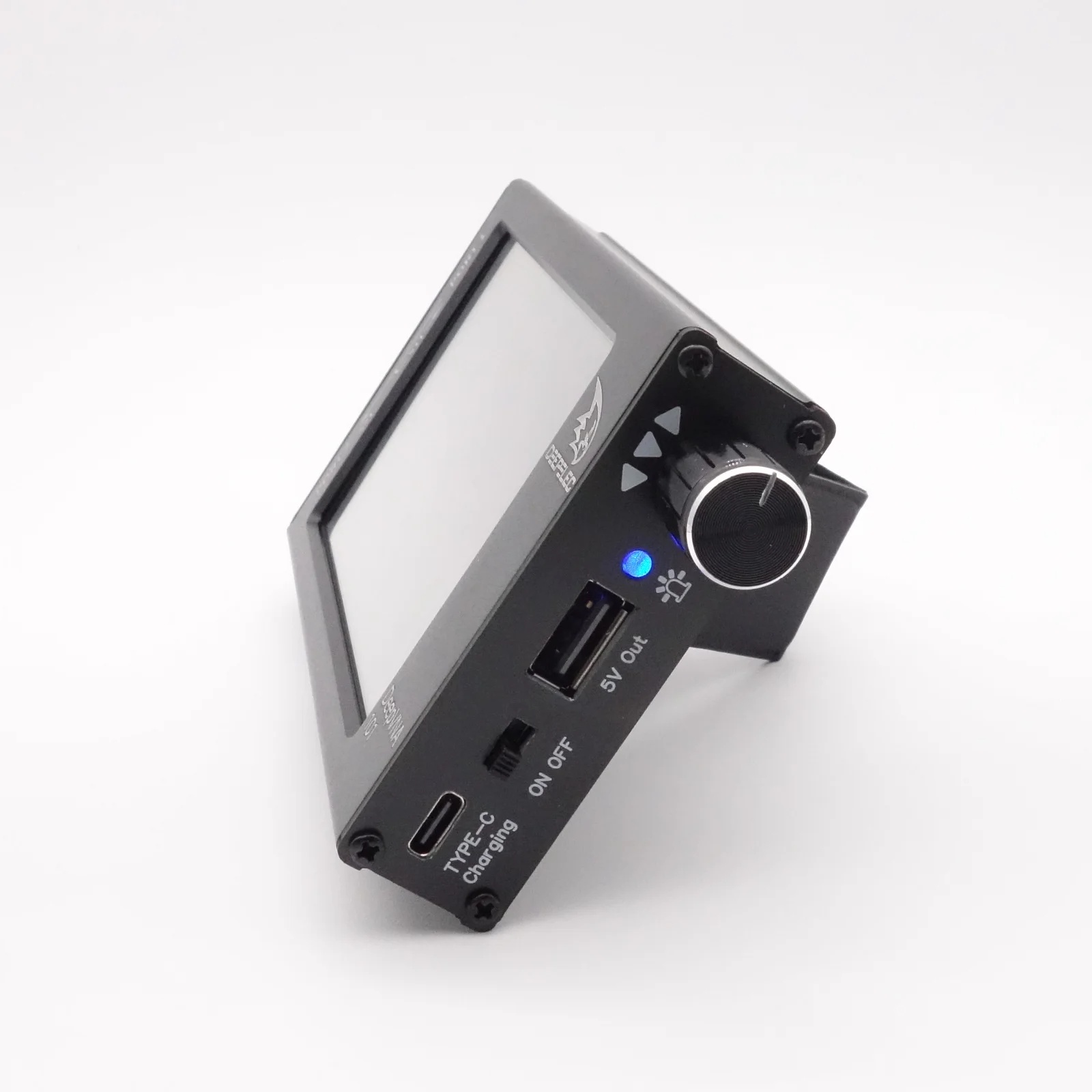

1. The user buttons are replaced by a rotary knob, making control more convenient and flexible.
2. New RTC circuit added, with real-time clock and perpetual calendar functions.
3. Optimised S21 insertion loss/filter measurement performance, with a wider dynamic range.

With a 5000 mAh battery for extended battery life and a complete calibration kit, the DeepVNA 101 is ready to meet the demands of professionals and demanding amateurs alike.

Compatible with Windows, Linux and Mac OS operating systems, it is equipped with the latest firmware version v1.0.5, guaranteeing optimum use right from the start.

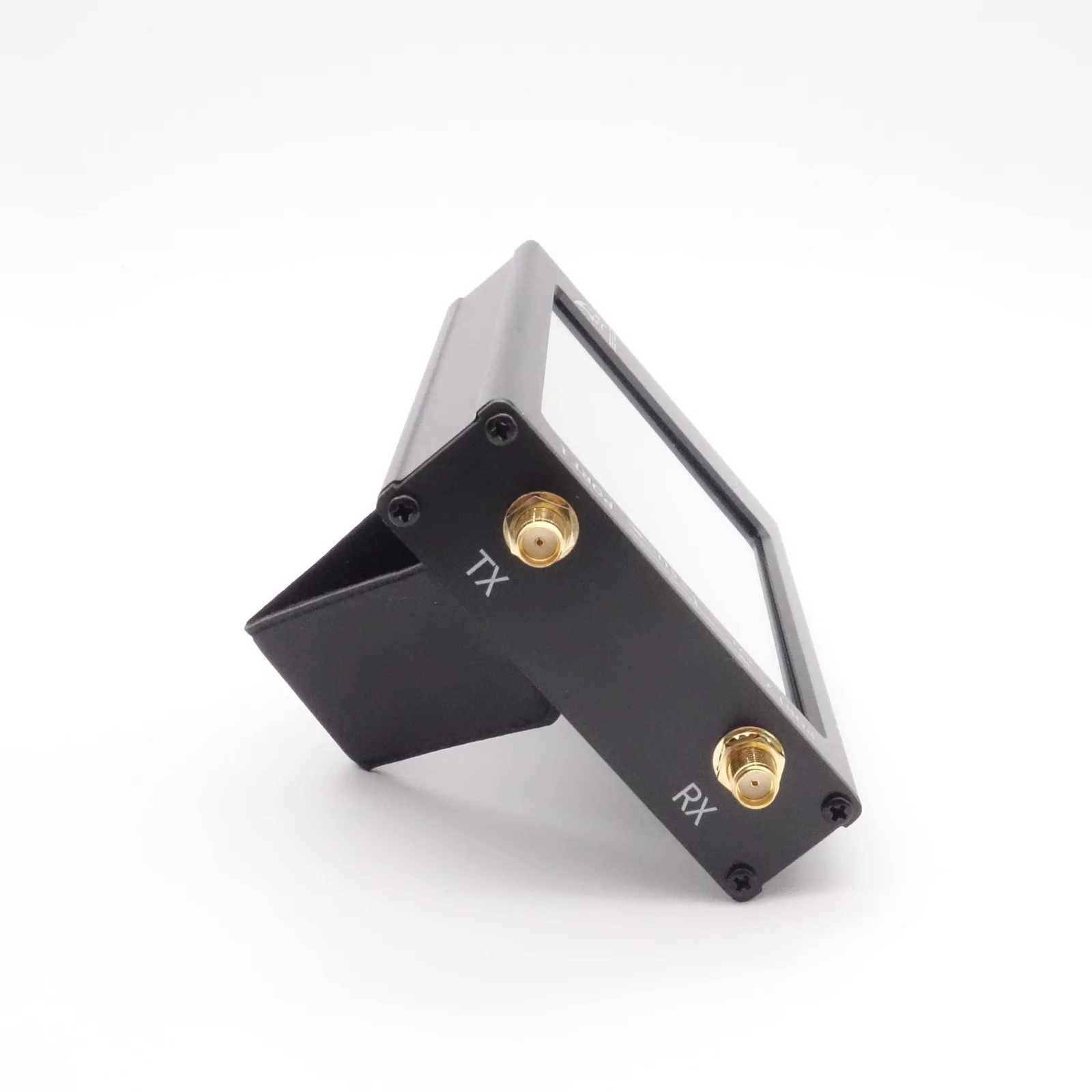

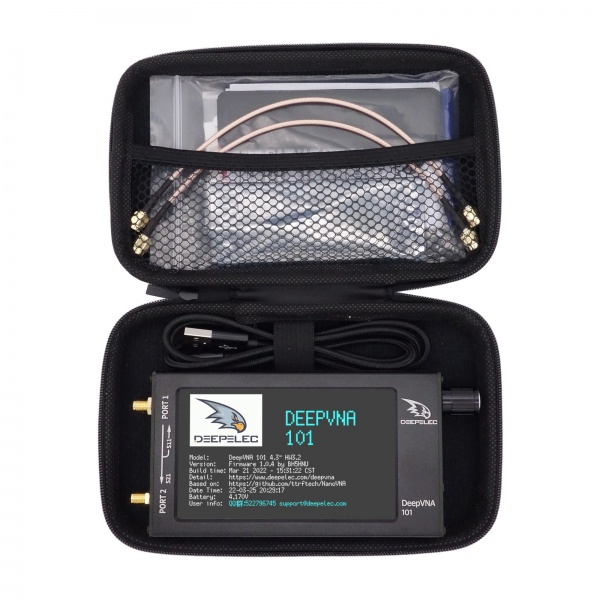

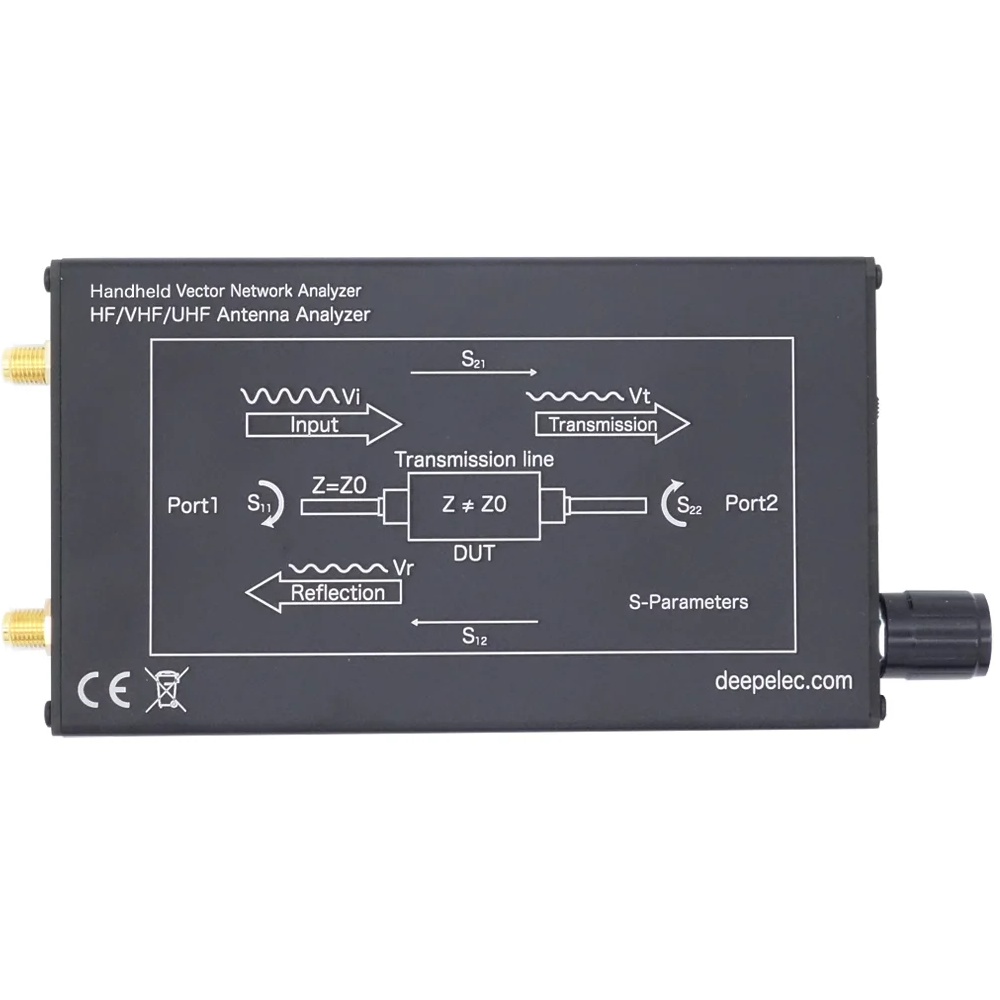

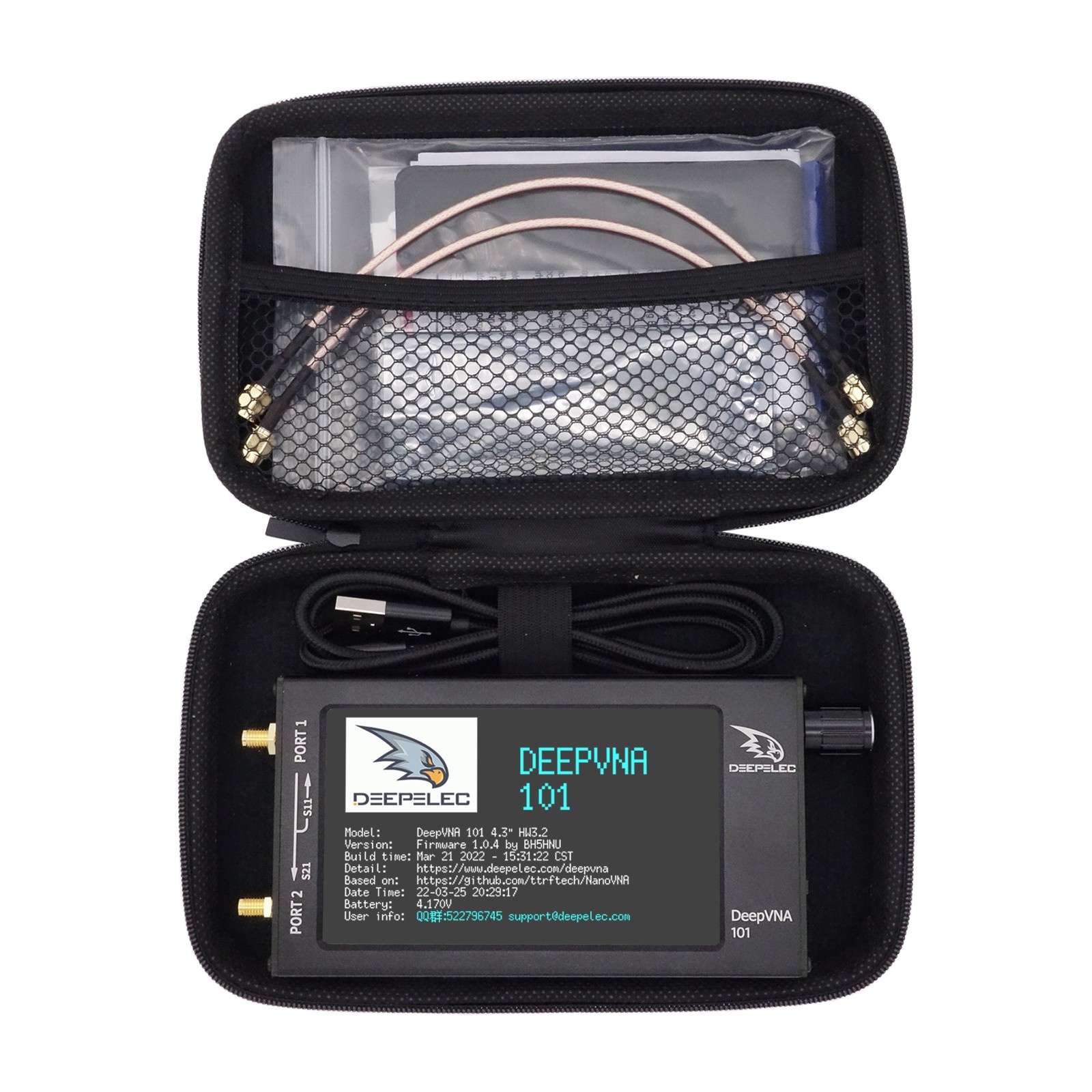

Scope of delivery: 1 DeepVNA 101 (official Deepelec version guaranteed), 1 calibration kit (including 1 dummy 50Ω load, 1 open circuit, 1 short circuit), 1 USB Type-C power cable, 2 SMA Male RG316 30cm cables, SMA adapters (male-male, female-female, male-female), a multilingual quick start guide. Software and firmware update below.

More details

Download

Drivers Windows VNA Deepelec

STM32 drivers for Windows and NanoVNA-F and DeepVNA. 0

VNA Deepelec quick guide

Deepelec NanoVNA-F and DeepVNA firmware v1.0.5 quick menu guide. 111.18k

Firmware DeepVNA v1.0.5

930.03k

Data sheet

Frequency range: 10KHz to 1.5GHz
Measuring range: 70dB (10KHz-300MHz), 60dB (300-900MHz), 50dB (900-1.5GHz)
Frequency accuracy: <0.3ppm
Screen: 4.3-inch colour touchscreen - 800*600
USB interface: USB type-C for power and communication
SWR measurement: Up to 1:1.5
Power supply: USB 5V 1A or internal battery (5000mAh)
Number of calibration points: 101, 201 or 301 (configurable)
Number of measurement points: up to 301 points

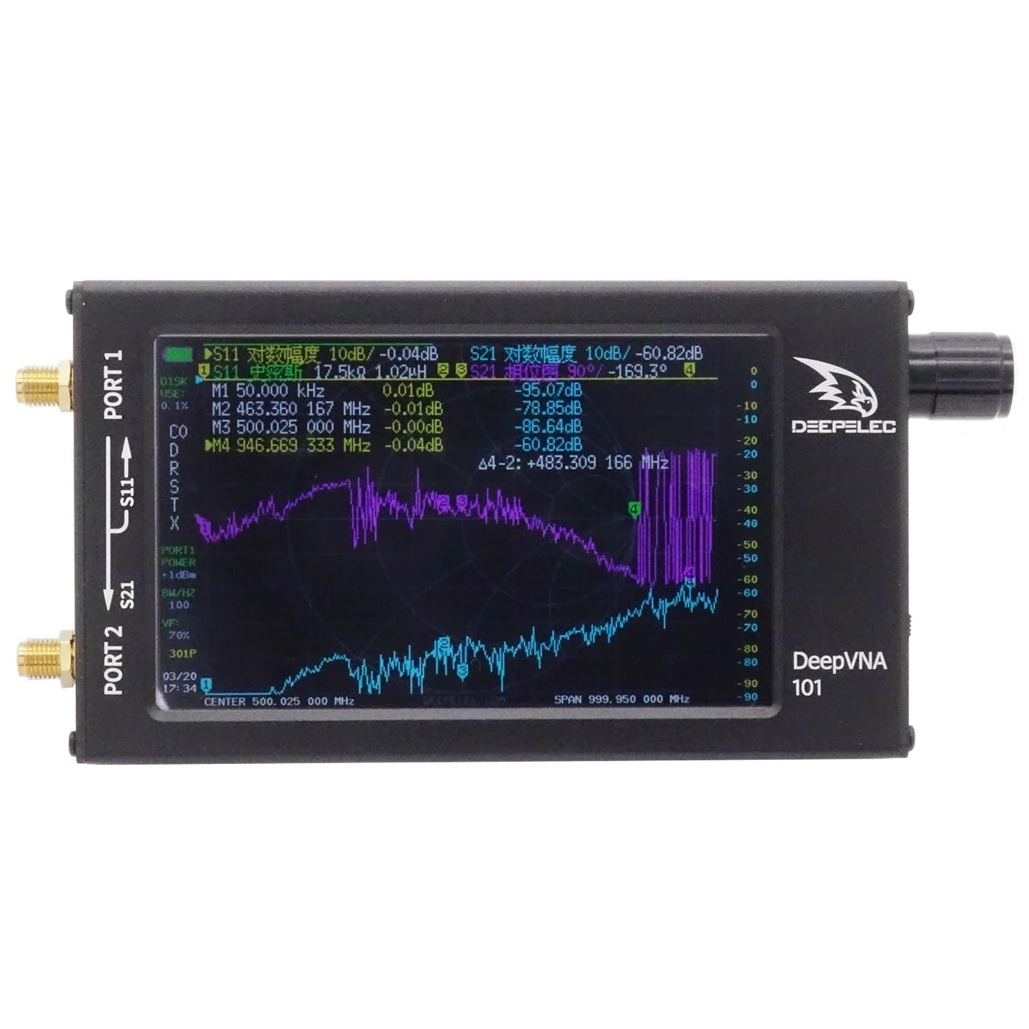

Measurement capability: S11 and S21 parameters, SWR, Smith diagram, phase, and more
Firmware installed: v1.0.5
Hardware version: v3.2
Dimensions: 15 x 8 x 2.5 cm
Version 2022
Complies with CE standards

Support newsgroup: https: //groups.io/g/deepelec

Links to compatible software, firmware and drivers can be found at: https: //deepelec.com/support/
