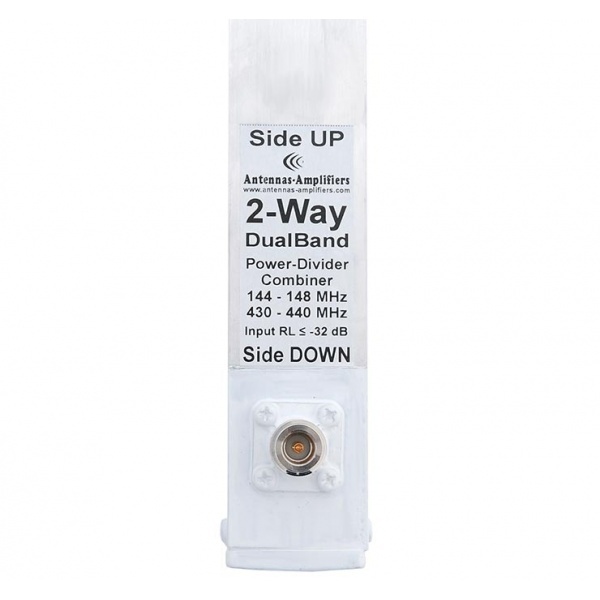

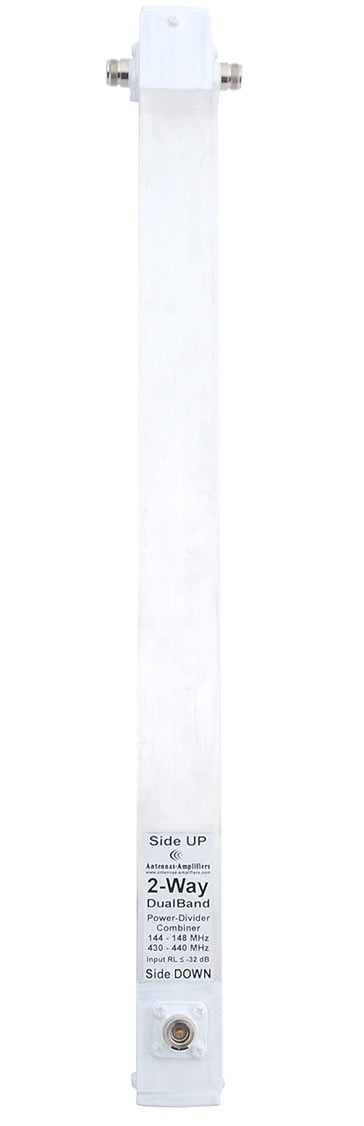

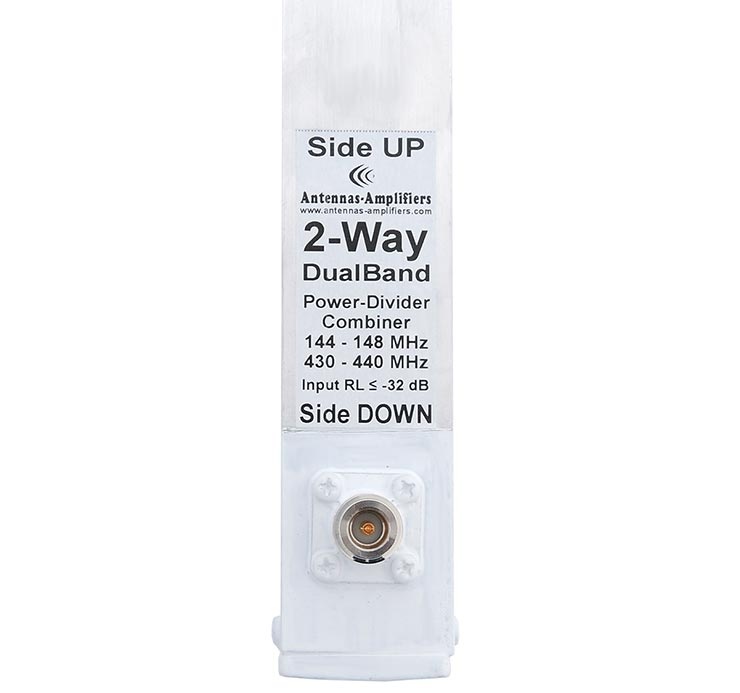

144-148 MHz & 430-440 MHz Divider Combiner Splitter 2 ports N 1/4 onde (AA)
No review at the moment2 meter 144 MHz Coaxial Power Splitter Divider 2 Port “N” Connectors 1/4 wave.
This divider has been tested and improved over the years.
With it, we came up with a perfect adjustment to 50 ohms.
Return loss often exceeds 40 dB, which means that the SWR is far below 1.05.
Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.
Data sheet
| Electrical specifications: | |
| Frequency range: | 144 – 148 MHz |
| Nominal Input Impedance: | 50 Ohm |
| Input Return Loss batter then: | – 30 dB |
| SWR Across Entire Band: | <1.05 |
| Maximum Power Input | 1500 W |
| Connector: | 3 x “N” |
| Mechanical specifications: | |
| Weight: | 0.9 kg |
| Transportation weight: | 1.9 kg |
Displayed SWR characteristic: From 144 to 148 MHz SWR is less than 1 : 1.1
S11 characteristics (Return Loss):
