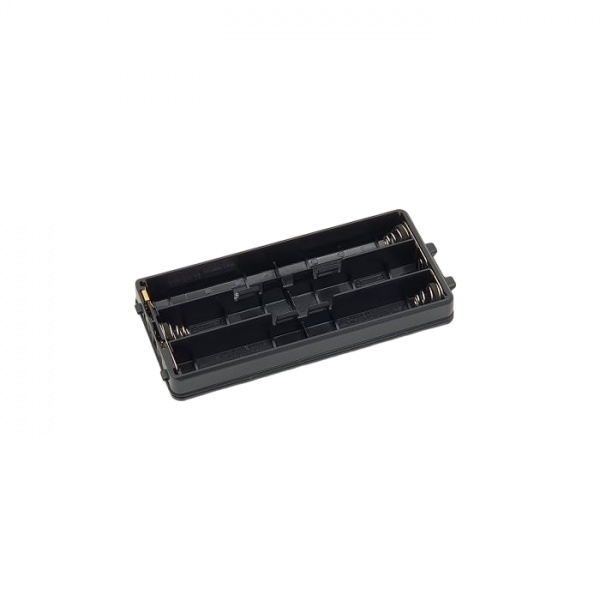

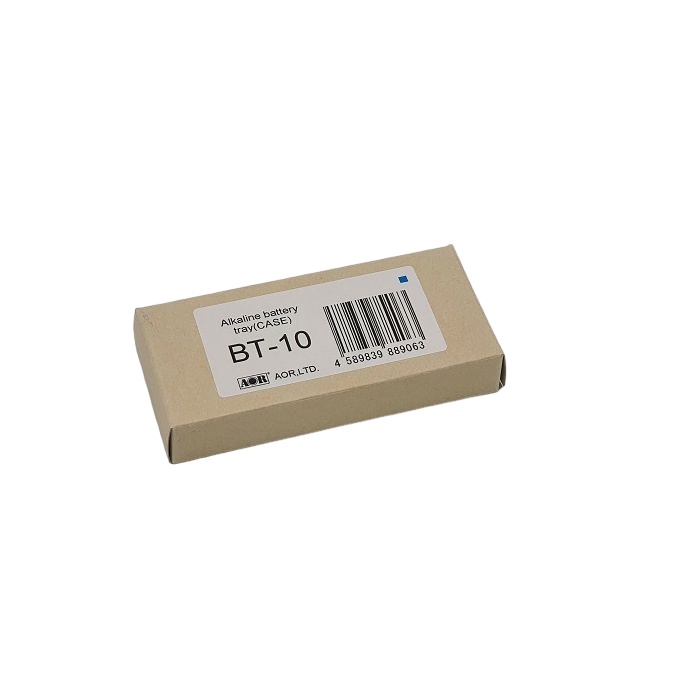

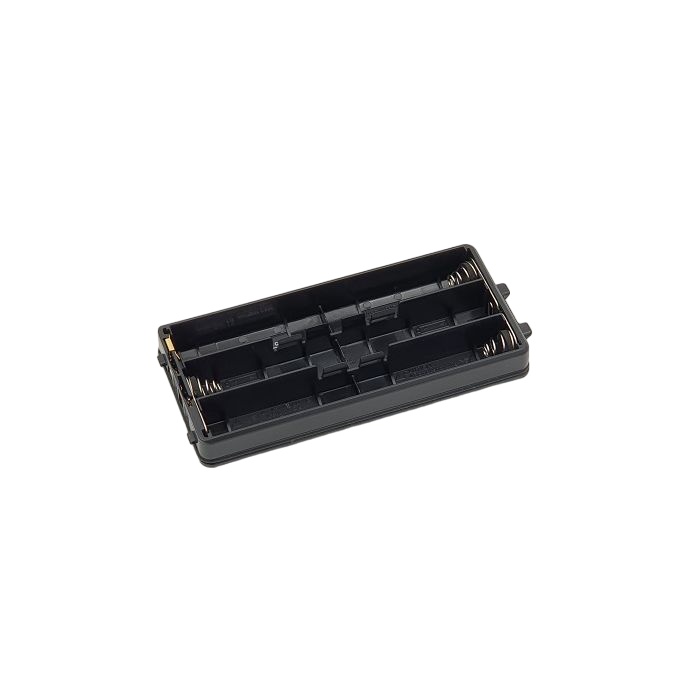

BT-10 battery box for AR-DV10 AOR scanner

• Frequency range: 100kHz to 1300MHz
• Operating modes: VFO, memory channel, program search, scan
• Digital reception modes: TETRA（Direct mode, mobile to mobile, DMR（Tier1/2/Motrbo, NXDN (6.25k), dPMR (446 Tier1, APCO25（Phase1, D-STAR, Yaesu（C4FM), Alinco（EJ47U, Japanese D-CR).
• Analogue reception modes: WFM, NFM, AM, USB, LSB, CW
• Number of VFOs: 3 (A / B / Z)
• Memory channels: 2000, memory banks: 40, search banks: 40
• Priority channel: 1
• Switching frequencies: 50 per bank or VFO
• Audio outputs: Internal speaker 700mW, headphone jack 200mW
• Antenna: 50Ω female BNC
• AGC, step-adjust, offset and priority reception
• Analogue voice descrambler
• Signal attenuator: Approx. 10dB ON/OFF
• Squelch modes: Noise squelch, level squelch, reverse tone, digital voice detection
• Max antenna input: 0dBm
• 7.4V 2000mAh lithium-ion battery (BP-10)
• External input power supply: 6.5V to 10.5V
• Current consumption: 240mA (typical), 500mA（max)
• Case size: 65（W）×137（H）× 41（D）mm (including battery, excluding projections)
• Weight: Approximately 420 grams (including battery pack, antenna and belt clip
• Temperature range: -10℃～+50℃

Circuit type:

100kHz～1300MHz Super single heterodyne
IF 47.25MHz SDR direct sampling
WFM (64MHz～108MHz) Direct SDR conversion
AM (520kHz～1710kHz) Direct SDR conversion
Frequency stability: ±5 ppm (-10℃~+50℃)

IF filter bandwidth:

Analog modes: 100kHz, 30kHz, 15kHz, 8kHz, 6kHz, 5.5kHz, 3.8kHz, 2.6kHz, 1.8kHz, 500Hz, 200Hz (selection depends on mode)
Digital modes: 6kHz, 15kHz, 30kHz (automatic selection)

Sensitivity (typical values):

SSB (10dB S/N) 0.3μV
AM (10dB S/N) 1.6μV
FM (12dB SINAD) 0.3μV
WFM (12dB SINAD) 2.6μV

AOR AR DV10 software

The latest software versions can be downloaded from the official AOR website: http://www.aorja.com/receivers/ar-dv10.html

The purchase, sale and possession of this equipment is permitted in Europe, the use is regulated according to the laws applicable in the country of use.
