> Ham & radio equipment>Receiver Scanner>Accessoiry>2200mAh 7.2V BP-10 battery for AOR DV10
2200mAh 7.2V BP-10 battery for AOR AR-DV10 View larger
Previous Next

AOR

AOR-BP10-2720

New product

Japan

2200mAh 7.2V BP-10 battery for AOR DV10

rating No review at the moment

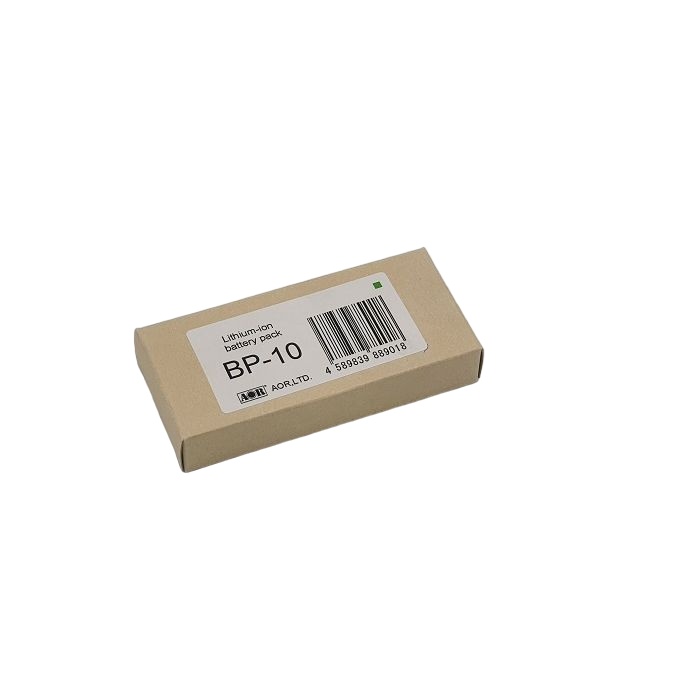

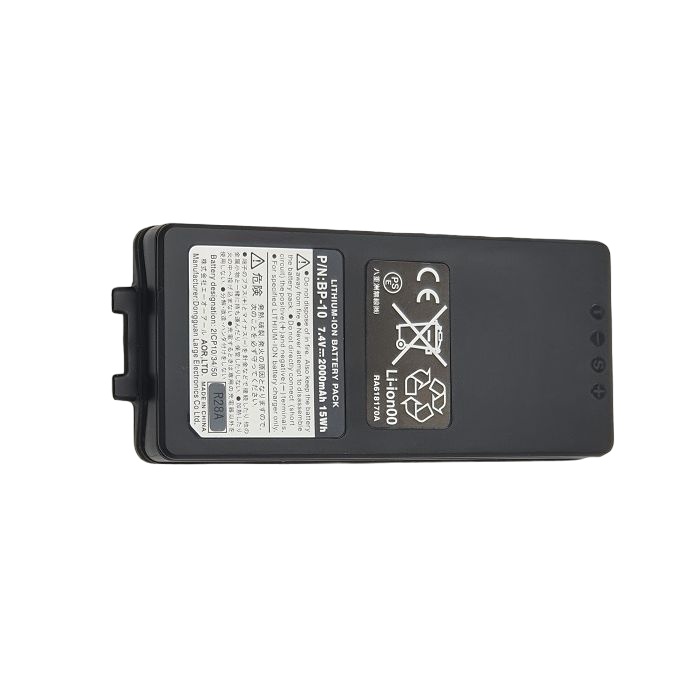

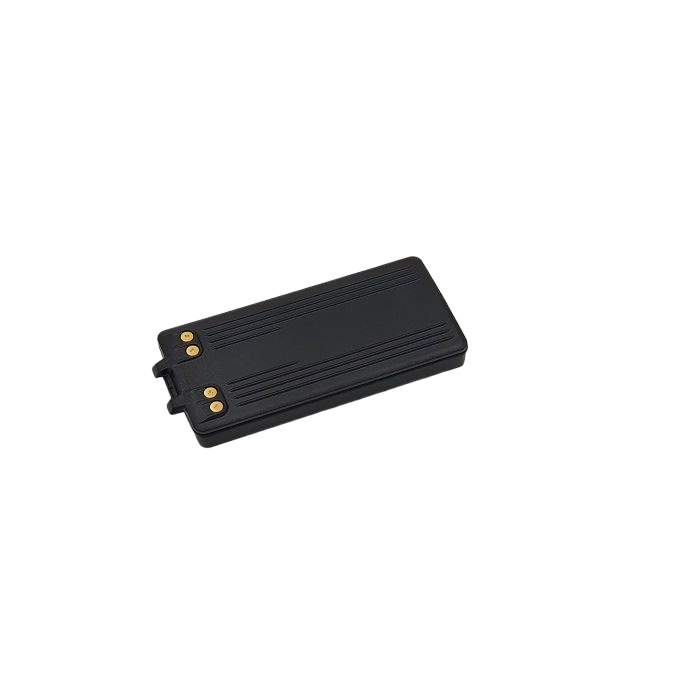

2200mAh 7.2V Li-ion battery compatible with the AOR DV10.

Supplied with: 1 x 2200mAh BP-10 battery, guaranteed by AOR.

More details

99,00 € tax excl.

Out of stock, available in 3-4 weeks

Data sheet

  • Frequency range: 100kHz to 1300MHz
  • Operating modes: VFO, memory channel, program search, scan
  • Digital reception modes: TETRA（Direct mode, mobile to mobile, DMR（Tier1/2/Motrbo, NXDN (6.25k), dPMR (446 Tier1, APCO25（Phase1, D-STAR, Yaesu（C4FM), Alinco（EJ47U, Japanese D-CR).
  • Analogue reception modes: WFM, NFM, AM, USB, LSB, CW
  • Number of VFOs: 3 (A / B / Z)
  • Memory channels: 2000, memory banks: 40, search banks: 40
  • Priority channel: 1
  • Switching frequencies: 50 per bank or VFO
  • Audio outputs: Internal speaker 700mW, headphone jack 200mW
  • Antenna: 50Ω female BNC
  • AGC, step-adjust, offset and priority reception
  • Analogue voice descrambler
  • Signal attenuator: Approx. 10dB ON/OFF
  • Squelch modes: Noise squelch, level squelch, reverse tone, digital voice detection
  • Max antenna input: 0dBm
  • 7.4V 2000mAh lithium-ion battery (BP-10)
  • External input power supply: 6.5V to 10.5V
  • Current consumption: 240mA (typical), 500mA（max)
  • Case size: 65（W）×137（H）× 41（D）mm (including battery, excluding projections)
  • Weight: Approximately 420 grams (including battery pack, antenna and belt clip
  • Temperature range: -10℃～+50℃

Circuit type:

100kHz～1300MHz Super single heterodyne
IF 47.25MHz SDR direct sampling
WFM (64MHz～108MHz) Direct SDR conversion
AM (520kHz～1710kHz) Direct SDR conversion
Frequency stability: ±5 ppm (-10℃~+50℃)

IF filter bandwidth:

Analog modes: 100kHz, 30kHz, 15kHz, 8kHz, 6kHz, 5.5kHz, 3.8kHz, 2.6kHz, 1.8kHz, 500Hz, 200Hz (selection depends on mode)
Digital modes: 6kHz, 15kHz, 30kHz (automatic selection)

Sensitivity (typical values):

SSB (10dB S/N) 0.3μV
AM (10dB S/N) 1.6μV
FM (12dB SINAD) 0.3μV
WFM (12dB SINAD) 2.6μV

AOR AR DV10 software

The latest software versions can be downloaded from the official AOR website: http://www.aorja.com/receivers/ar-dv10.html

The purchase, sale and possession of this equipment is permitted in Europe, the use is regulated according to the laws applicable in the country of use.
