View larger

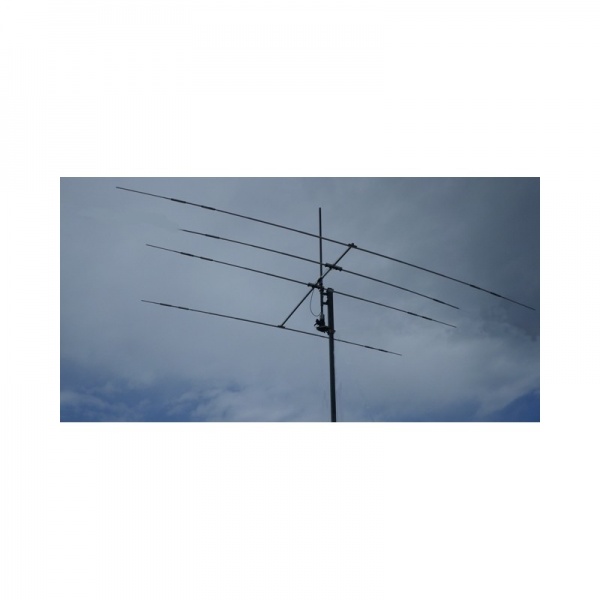

Yagi multi-band antenna with PST54 traps for 12 15 17 and 20m ProSisTel
No review at the momentFeatures :
- 5-band 10-12-15-17-20m trap antenna, 4 elements
- The antenna has 3 elements in bands 10-15-20, the fourth element works as a rotating dipole in bands 12-17m.
- You can add an upgrade kit for 30 or 40m, making it a 6-band antenna.
- Balun 1:1 2KW with SO239 supplied
- Single coaxial 50ohm
- Gain 10-15-20m= 6-8 dBd
- 20m bandwidth = ~250Kc/s, full coverage of other bands
- Gain 12-17m = 0dB
- Impedance 50 ohms =
- F/B= 20m 6-8dB, 15m 8-10dB, 10m approx. 18-20dB
- Front panel => 20dB
- VSWR = extreme frequencies within the limit of 1 : 1.8 (see table)
- Boom length = 4m
- Wind surface = 0.7m2
- Maximum wind speed = 130km/h
- Radius = rotation in approximately 5m
- Weight = approx. 28kg
- Acceptance pole 48mm (standard) or 60mm (optional)
- Material = AL6060T6, stainless steel hardware
Download
