> Radio Antennas>50 MHz>Grazioli FE6V Vertical antenna 50 to 54MHz 5/8 band 6m 2kW max.
New Grazioli FE6V Vertical antenna 50 to 54MHz 5/8 band 6m 2kW max. View larger
GRAZIOLI ANTENNE

GRAZIOLI-FE6V-2865

New product

Italy

Grazioli FE6V Vertical antenna 50 to 54MHz 5/8 band 6m 2kW max.

rating No review at the moment

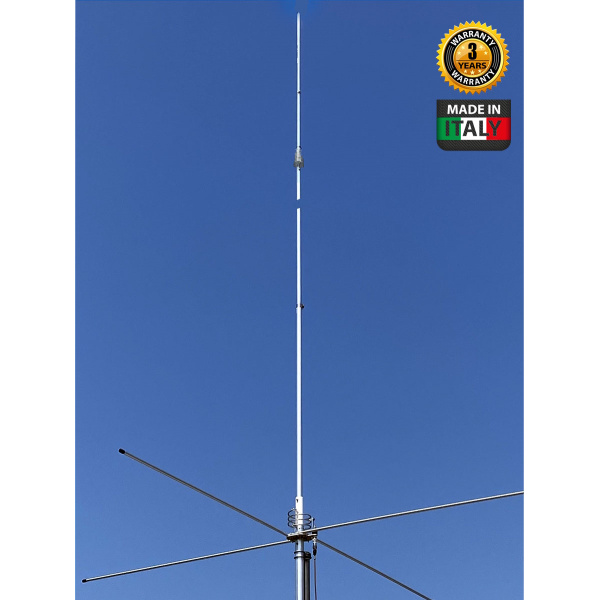

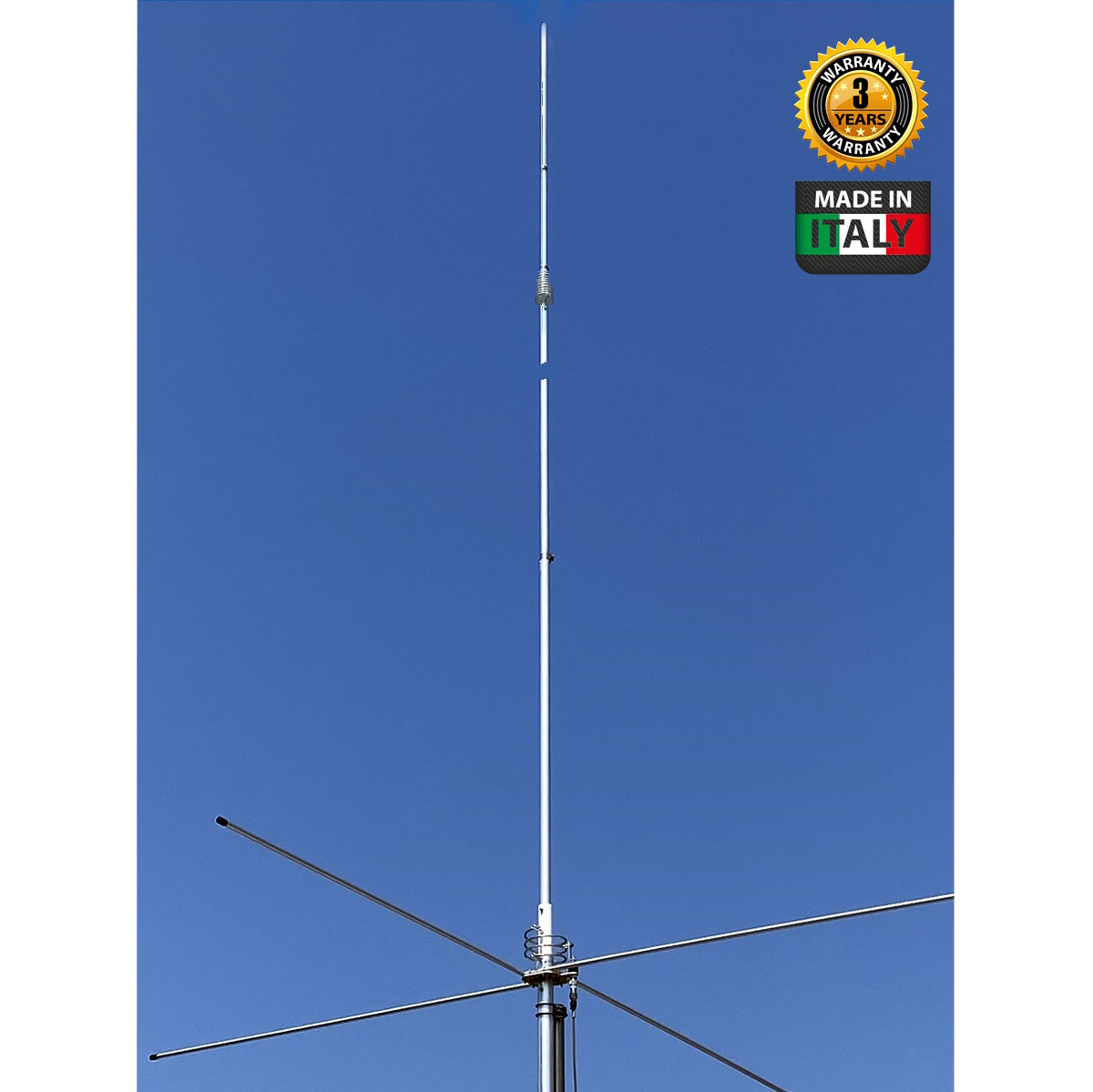

Grazioli FE6V 5/8λ omnidirectional antenna measuring 4.17m for the 6m band. The ground plane is made up of 4 robust quarter-wave radials 1.4m long.

It has an adjustable frequency range from 50 to 54 MHz and an asymmetrical impedance of 50Ω.

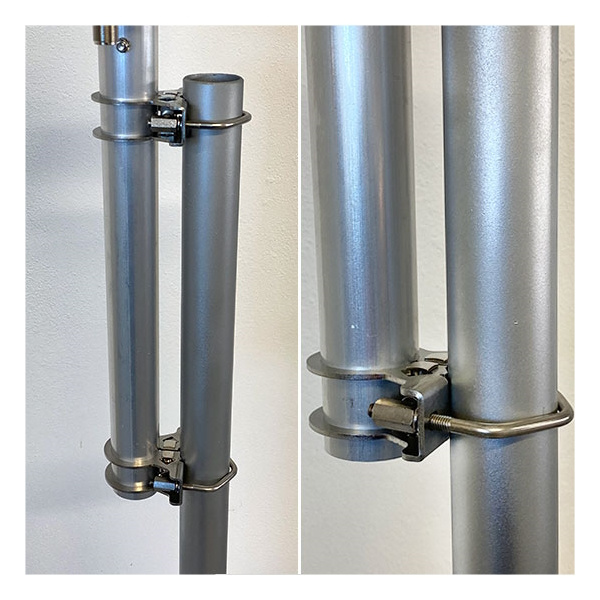

It can be mounted on masts with diameters ranging from 40 to 54 mm. It can withstand a wind load of up to 150 km/h, offering solid resistance to outdoor conditions.

Supplied with: 1 Grazioli FE6V CB antenna.

Delivery info: This antenna is considered a large parcel and carriers apply an extra charge for shipping. Package height 145cm.

More details

189,00 € tax excl.

Out of stock, available in 3-4 weeks

Download

Manual FE6V (EN)

3.66M

Data sheet

Technical specifications :

  • Adjustable frequency range from 26 to 28 MHz
  • 50Ω unbalanced impedance
  • Omnidirectional radiation
  • Vertical polarisation
  • 3.65dBi gain
  • Resonant SWR ≤1.2:1 measured at the connector
  • Bandwidth 3.1 MHz to 50 MHz with SWR <2
  • Maximum applicable power of 2000 Watts continuous all transmission mode

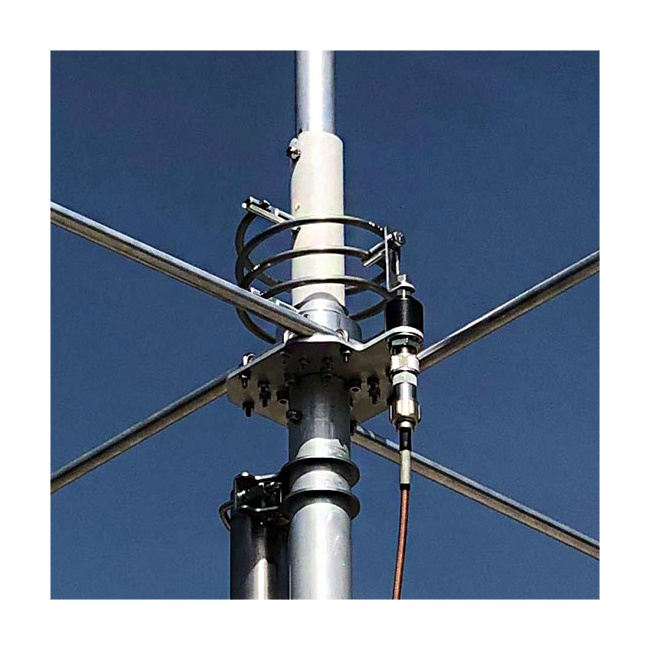

  • Power system: High Q power coil connected to DC earth
  • Connector: 50 Ω female UHF with PTFE insulation, gold-plated centre pin

The FE6V connector is not the commercial grade SO-239 used by most manufacturers. The connector was designed and built directly by Grazioli, has a true impedance of 50 Ohms and can be used up to 500 MHz.

The body is made of CW614N nickel-plated brass, while the pin is plated with 24-carat gold to prevent oxidation and fitted with a 4-fin insulator that maintains its centring and elasticity, preventing contact losses.

The insulating part is made of PTFE, one of the best insulating materials because of its exceptional electrical (low dielectric constant and low loss factor) and thermal (operating temperature from -100° to +260°) properties.

Finally, the connector is protected by a special elastomer cap that prevents the ingress of water and moisture.

Specifications:

  • Materials: AW6063-T66 aluminium alloy tube, fibreglass, brass, PTFE, stainless steel screws
  • Wind surface area: 0.16m2
  • Wind load at 130Km/h: 153N - 15.6Kgf
  • Wind resistance: 150 Km/h
  • Total height: 4.17m at 50MHz
  • Radial length: 1.4m (1/4 wave)
  • Mast mounting: ø 40-54 mm
  • Net weight: 3.34 Kg

Warning: Installing this product near high-voltage lines is dangerous. Follow the instructions for your safety.

High-quality material: AW6063-T66 aluminium alloy, T-66 hardened for maximum strength.

The tubular elements are extremely precise in both diameter and wall thickness, allowing precise coupling with no "play" between the tubes.

Robust ground plane: ground plane made up of 4 robust 1.4 m full quarter-wave radials fixed to the support plate with U-bolts and self-locking nuts. Fibreglass reinforcements strengthen the joints and prevent crushing.
