> Ham & radio equipment>CB 27Mhz >27 MHz antennas>27 & 28 MHz vertical>Sirio GPA27-45 27-45MHz base antenna 4.73m
CB Siro GPA27-45 base antenna View larger
Previous Next

Sirio

SIRIO-GPA27-45-1583

New product

Italy

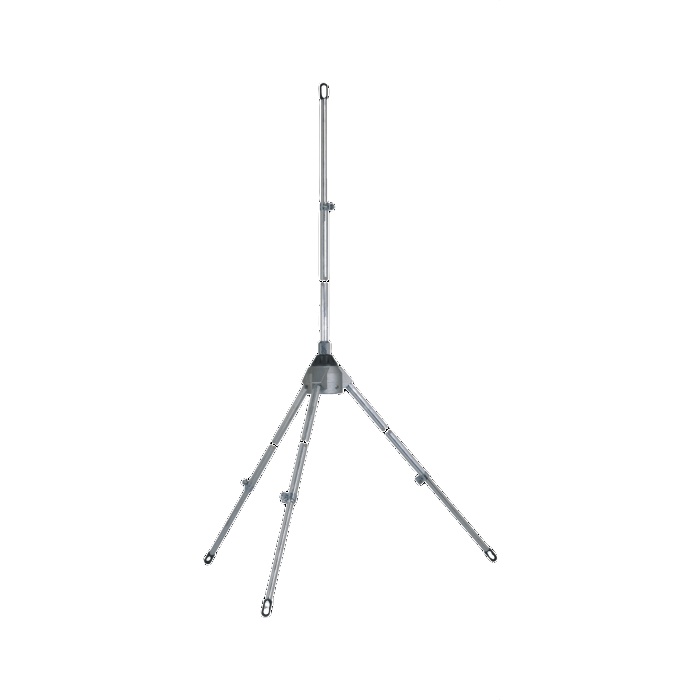

Sirio GPA27-45 27-45MHz base antenna 4.73m

rating Read the review
Average rating: 5/5 Number of reviews: 1

CB Siro GPA27-45 base antenna, 1/4 wave, length 4.73m , 1000 Watts.

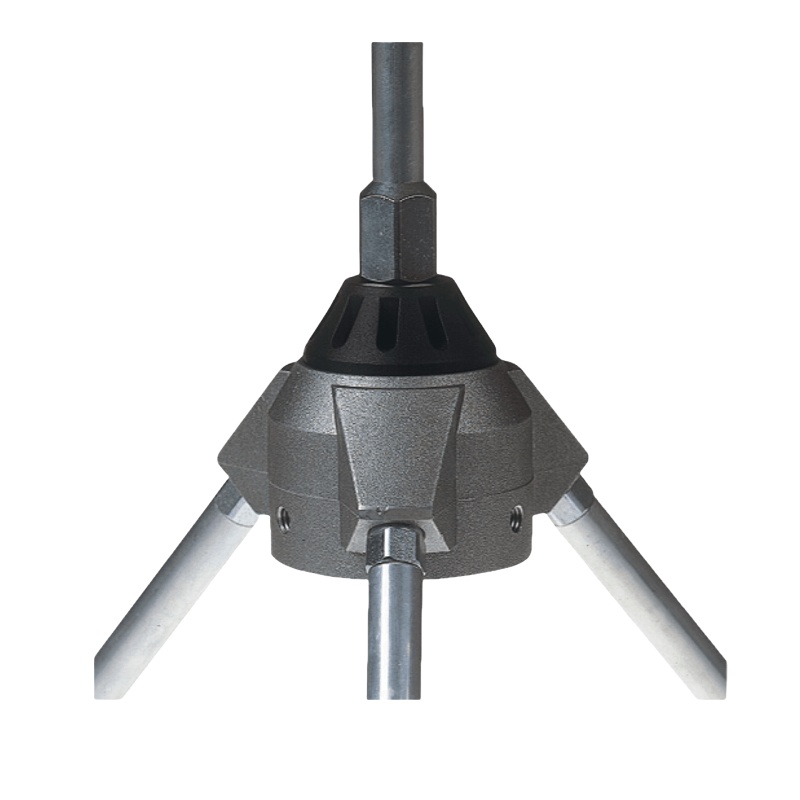

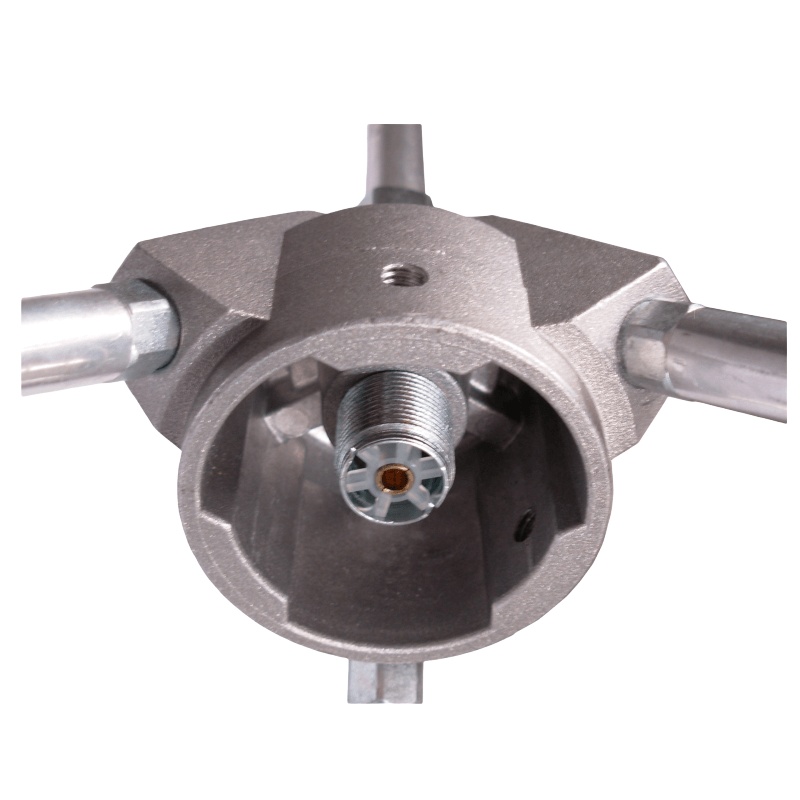

Entirely made of non-corrosive aluminium and assembled on a solid cast iron base which allows an easy and safe installation and ensures very good performances.

  • Supplied with: 1 GPA 27-45 antenna.

Delivery info: This antenna is considered a very large package and the carriers apply an extra charge for shipping.

More details

49,90 € tax excl.

In stock

   4 Items

Download

Manual GPA-27-45

93.46k

Data sheet

  • Type: 1/4 wave ground plane
  • Frequency range: 27 - 45 MHz tunable
  • Impedance: 50 Ohm
  • Radiation: Omnidirectional
  • Polarisation: Vertical
  • Gain: 0 dB - 2.14 dBi
  • VSWR bandwidth: 2:1 2.5 MHz to 27 MHz
  • Max. power: 1000 Watts Power: 1000 Watts
  • Connection: UHF female (SO-239)
  • Height: approx. 4730 mm
  • Weight: approx. 1250 grams
  • Length of radials: 2680 mm
  • Mounting mast: Ø Diameter 35 - 40 mm
  • Wind resistance: 126 N at 150 Km/h
