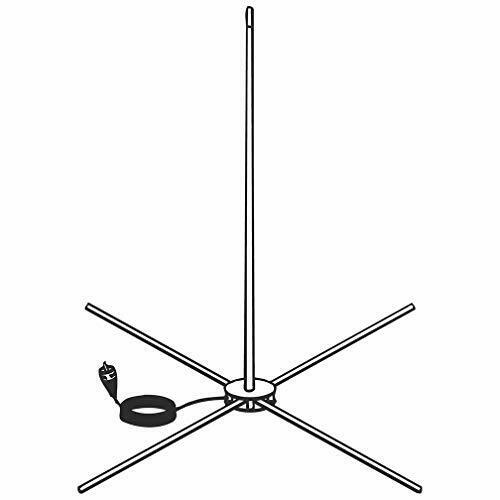

Firestik IBA-5 CB antenna for indoor use View larger
Firestik

FIRESTIK-IBA5-1594

New product

U.S.A

Firestik IBA-5 CB antenna for indoor use

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

CB Antenna for indoor use, White Fiber, Length 150 cm, Max Power 1000 Watts PEP.

Suitable for flats, home offices, campsites, construction sites or locations with outdoor antenna restrictions.

Supplied with : Bare hand tunable whip (76cm), hub with 5.5 meters of Fire-Flex RG-58A/U coaxial cable, tuning screws, mounting instructions.

Delivery info: This antenna is considered a very large package and the carriers apply an extra charge for shipping.

More details

129,00 € tax excl.

In stock

   2 Items

Warning: Last items in stock!

Download

Manuel Firestik IBA-5 (EN)

237.53k

Notice Firestik IBA-5 (EN)

30.49k

Data sheet

The radiating element is a five foot Firestik type antenna with our patented tunable tip mechanism. The core is 3/8 inch fiberglass wound with 19ga double insulated magnetic wire. The base of the antenna is made of 1/2 inch chrome plated hexagonal brass and has a standard 3/8-24 thread. The entire assembly is covered with a white PVC shrink sleeve.

The hub is a central assembly that connects the antenna, coax and radials. It consists of two circular metal discs, one upper and one lower. The upper disc contains the coax and the antenna coupling nut, while the lower disc is used to connect the four ground plane radials. The discs are mounted directly on top of each other with 3/4 inch spacers.

The coaxial cable supplied with the kit is a 5.5 metre RG-58A/U. It is a high quality, twisted centre conductor coaxial cable with an average shielding of 95% and above. A standard PL-259 connector is installed at one end of the coaxial cable for connection to the radio. The antenna end of the coax is equipped with a unique Fire-Ring connector for trouble-free operation.

The ground plane of the IBA-5 is provided by four (4) flat 25 mm x 76 cm steel radials. The radials are covered with black PVC heat shrink tubing and have a protective vinyl end cap on the outgoing end. At the hub end of the radial, a small hole is placed to attach the radials to the hub assembly.

Unfortunately, indoor antennas cannot, and are not intended to, transmit high frequency radio energy through all metal buildings.

  • Customers also bought

    • SWR & Power Meter 26-30Mhz 10-100W CRT
      19,90 €

      Reference: CRT-SWR2-571

      SWR & Power Meter 26-30Mhz 10-100W CRT

      SWR-Meter and watt-meter for the 27Mhz citizen band and frequencies from 26 to 30 Mhz, allows to measure the ROS (SWR) of the antenna and the power (100 watts maximum). Frequency: 26 to 30MHzPower

      19,90 €
    • RG58 coaxial cable with UHF Male (PL-259)
      7,50 €

      Reference: CORDON-RG58-UHF-M-30CM-1114

      RG58 coaxial cable extension with UHF Male (PL-259)

      UHF Male - UHF Male (PL-259) coaxial cable with RG58 MIL-C-17 50 ohm connector for frequency use from 0 to 1000Mhz. Available in different lengths: 30cm, 50cm, 1m or 2 metres. Connector 1: UHF Male

      7,50 €
    • M&P 10.3mm coaxial cable with UHF-Male connector (PL-259) HYPERFLEX 10
      49,90 €

      Reference: MESSI-JUMPER-M-HYF10-1UM-1146_6

      Extension coaxial M&P 10.3mm HYPERFLEX 10 cable with UHF-Male (PL-259)

      This coaxial cable extension is ready to use, with UHF Male connector (PL-259) Messi & Paoloni, with a diameter of 10.3mm with M&P HYPERFLEX 10 cable, flexible and offering excellent

      49,90 €
    • Radio CB President Lincoln II +
      329,00 €

      Reference: PRESIDENT-LINCOLN2-PLUS-1234

      Radio President Lincoln 2 PLUS V4 BLU 24Mhz and 28Mhz 35W

      President Lincoln II + mobile radio, for 24 Mhz (12m) and 28 Mhz (10m) amateur bands. Frequency range from 24,890 Mhz to 24,990 Mhz and from 28,000 Mhz to 29,700 Mhz in transmission with a power of

      329,00 €

  • We also recommend

Reviews

Click here to leave a review

rating 5
Bon matériel
Facile à installer bon matos
rating 5
antenne fixe

Bonjour ,
Je vous ferai part des résultats après montage et réglage de mes antennes ,
une sous toiture d'après tuto ,l autre en interne .
salutations
pierre weier

Questions

Question

L'antenne IBA-5 fonctionne t'elle vraiment dans un appartement au 2eme étage ?

Answer

D'un point de vue technique cette antenne fonctionnera dans le sens ou elle permettra d'avoir un ROS convenable afin de ne pas abimer le poste CB.

Maintenant d'un point de vue de la portée et des performances, elles seront fortement atténués par les murs et obstacles environnants.

Anonymous on 2022-04-06 15:59:42
