CB Grazioli FE10V 26 to 28Mhz 5 kW vertical antenna

View larger

Display all pictures

Manufacturer: GRAZIOLI ANTENNE

Reference: GRAZIOLI-FE10V-1865

Condition: New product

Country of origin:

Italy

Grazioli FE10V 5/8λ vertical antenna adjustable from 26 to 28MHz

Read the review

Average rating: 5/5 Number of reviews: 1

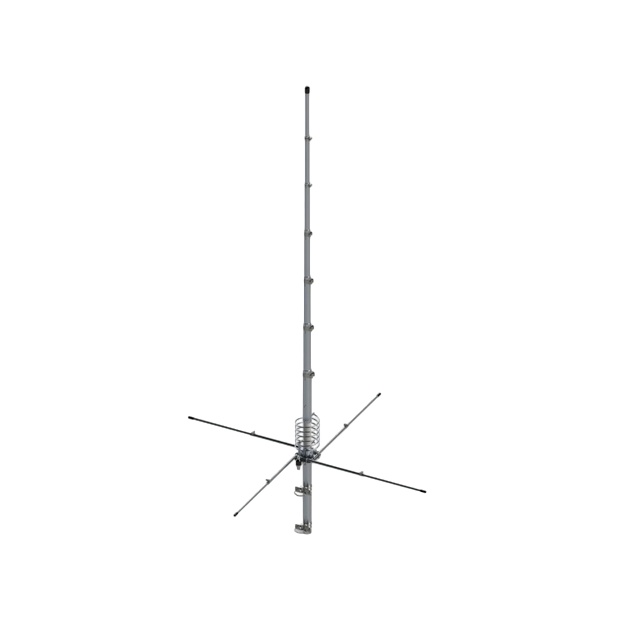

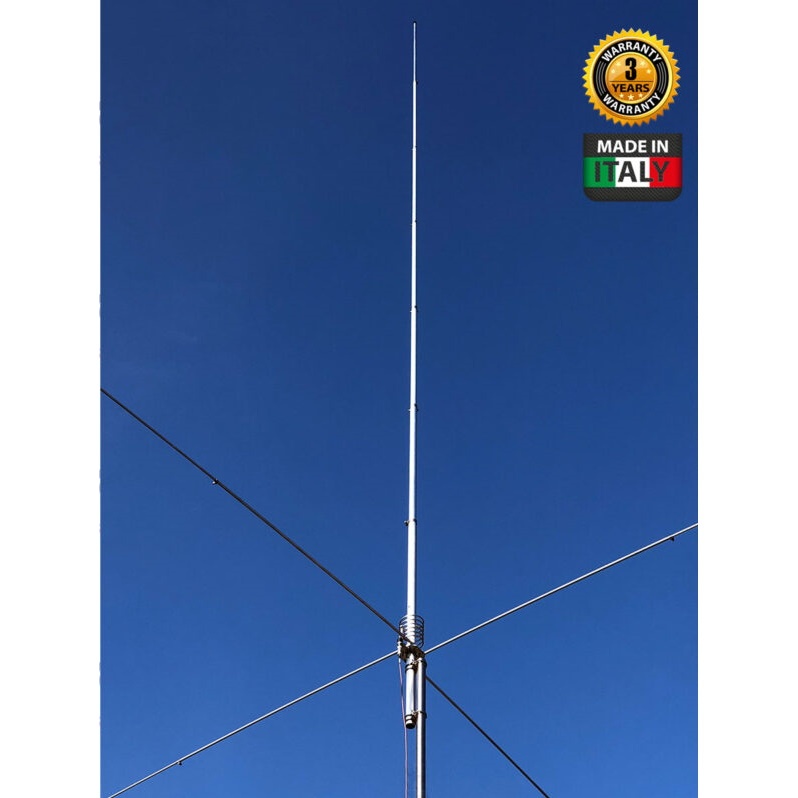

Grazioli FE10V 5/8λ omnidirectional CB antenna of 7.63m for the 10 (28MHz) or 11m (MHz) band. Ideal for outdoor transmissions.

It has an adjustable frequency range of 26-30MHz and an unbalanced impedance of 50Ω for optimum transmission.

Easy to mount on a mast with a diameter of 40 to 54 mm. It can withstand a wind load of up to 130km/h, offering solid resistance to outdoor conditions.

Delivered with: 1 CB Grazioli FE10V antenna.

Delivery info: This antenna is considered a large package and carriers apply an extra charge for shipping.

More details

Download

Manuel FE10V (EN)

4.02M

Data sheet

Technical data :

Adjustable frequency range from 26 to 28 MHz
50Ω unbalanced impedance
Omnidirectional radiation
Vertical polarisation
Gain of 1.5 dBd - 3.65 dBi

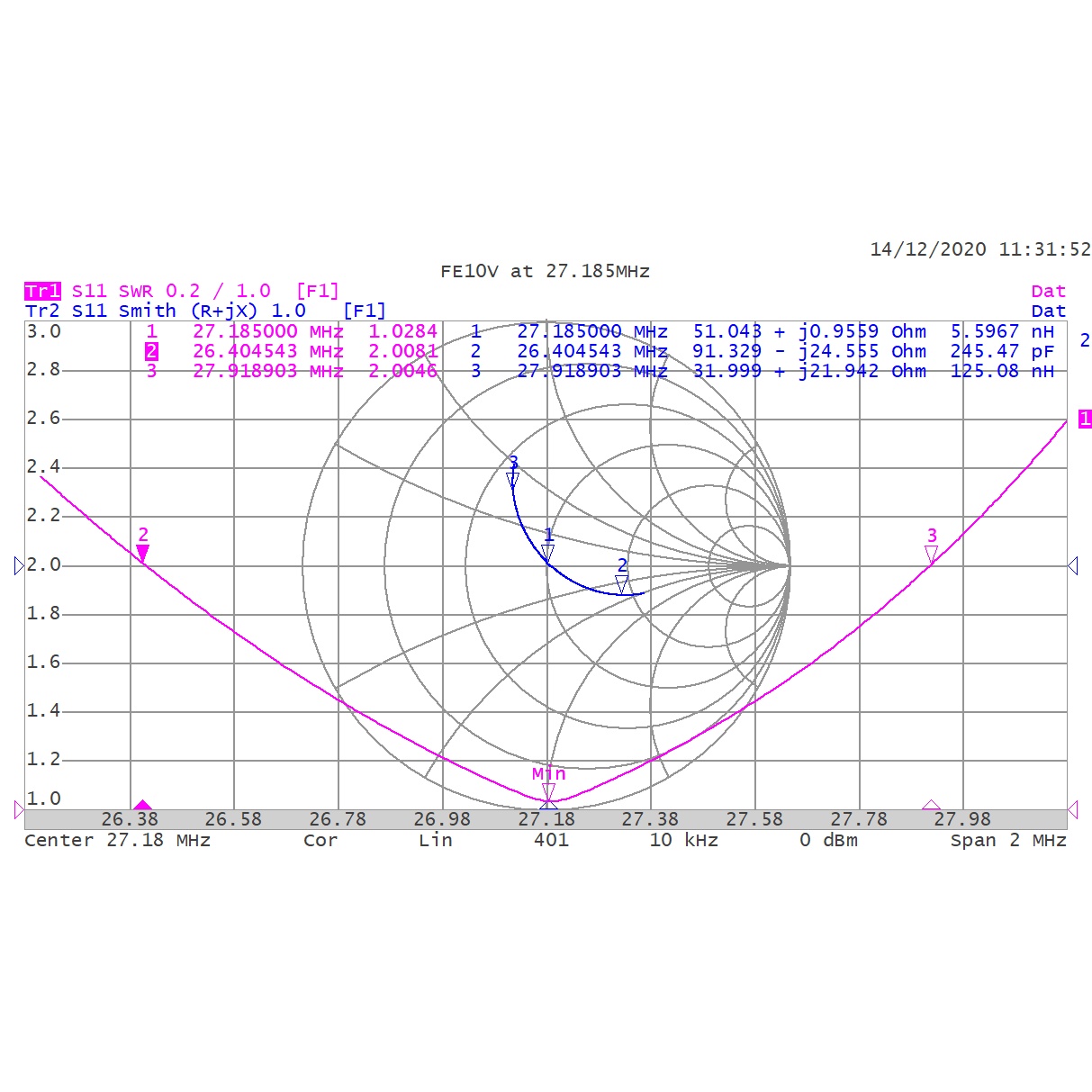

Resonant SWR ≤1.2 : 1 measured at the connector
Maximum applicable power of 5000 Watts continuous all transmit mode

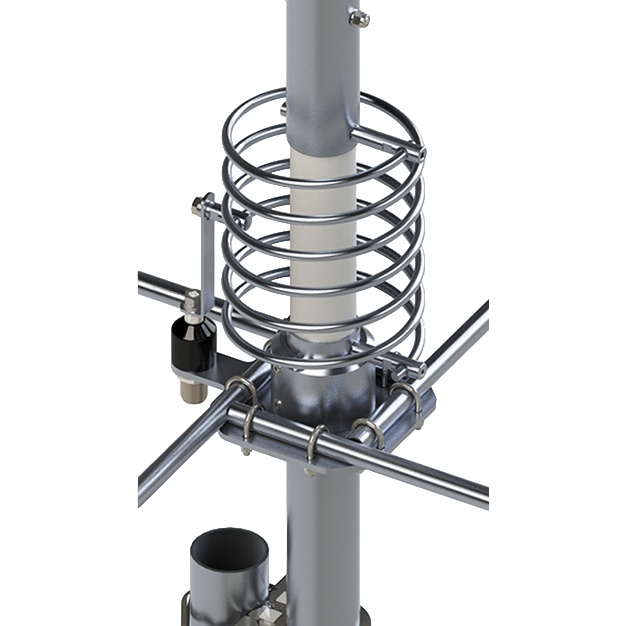

Power System: High Q coil power supply connected to DC ground

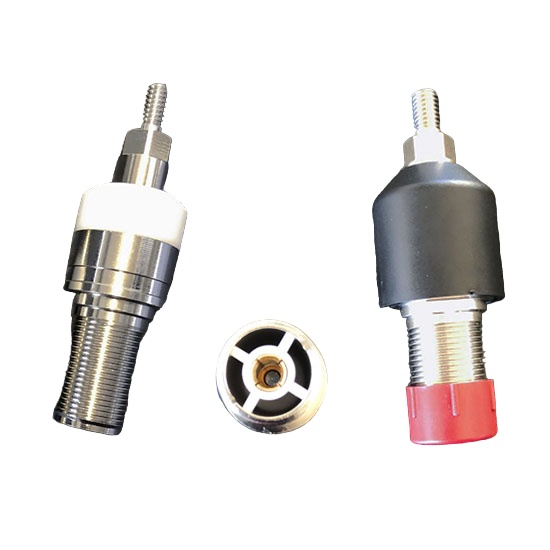

Connector: 50 Ω female UHF with PTFE insulation, gold-plated centre pin

Specifications:

Materials: AW6063-T66 aluminium alloy tube, fibreglass, brass, PTFE, stainless steel screws
Wind surface: 0.29m2
Wind load at 130Km/h: 280N - 28.5Kgf
Wind resistance: 130 Km/h
Total height: 7.63m at 26MHz
Radial length: 2.7m (1/4 wave)

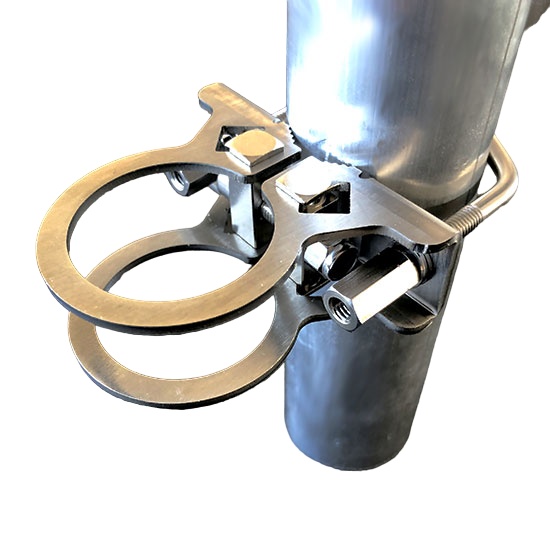

Mast mounting: ø 40-54 mm
Net weight: 6 Kg

Caution: Installation of this product near high voltage lines is dangerous. Follow the instructions for your safety.

High quality material: AW6063-T66 aluminium alloy, hardened to T-66 condition for maximum strength.

The tubular elements are extremely precise in both diameter and wall thickness, allowing for precise coupling without "play" between tubes.

Robust ground plane: Ground plane consisting of 4 robust 2.7m full quarter wave radials attached to the support plate with U-bolts and self-locking nuts. Fibreglass reinforcements strengthen the joints and prevent crushing.
