> Ham & radio equipment>CB 27Mhz >27 MHz antennas>Small CB antenna PNI ML29 34cm 26-28MHz with magnetic base and 4m cable
CB antenna PNI ML29 34cm 26-28MHz 500W magnetic base 70mm RG58 cable 4m View larger
Previous Next

PNI France

PNI-ML29-2675

New product

Small CB antenna PNI ML29 34cm 26-28MHz with magnetic base and 4m cable

rating No review at the moment

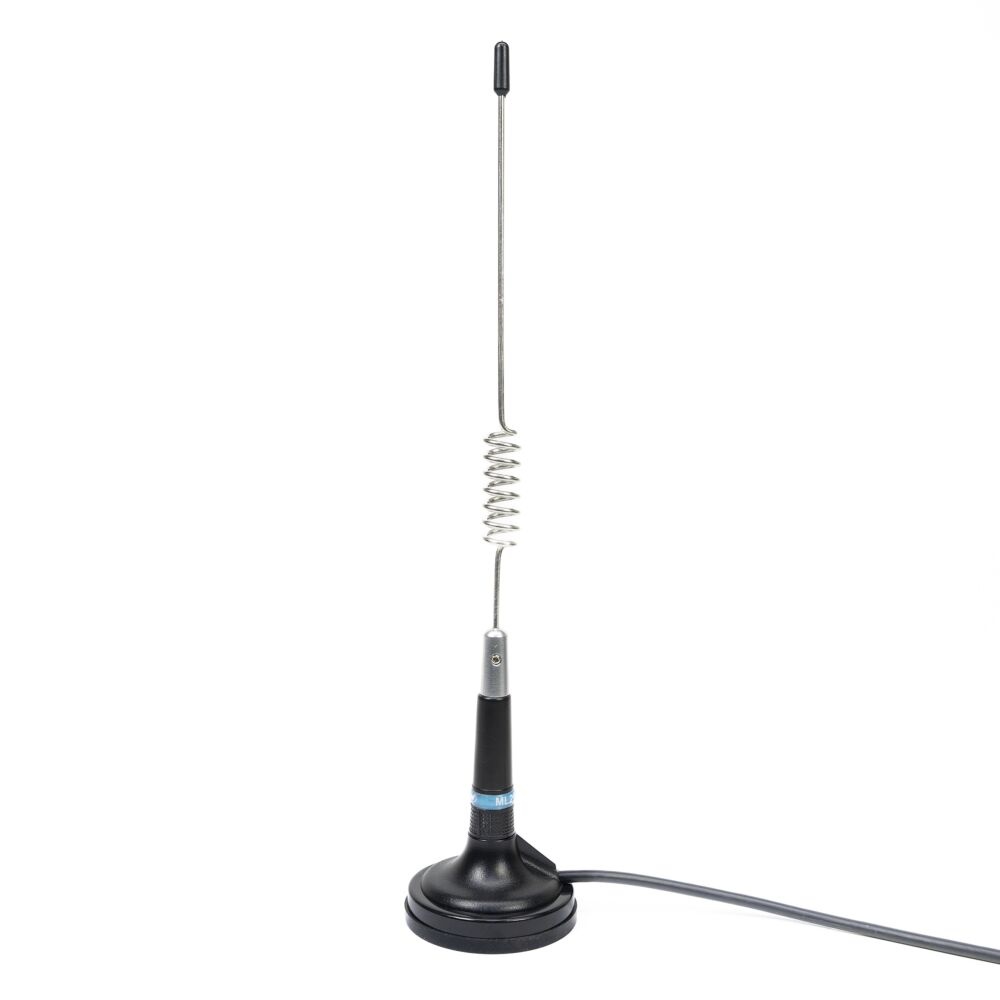

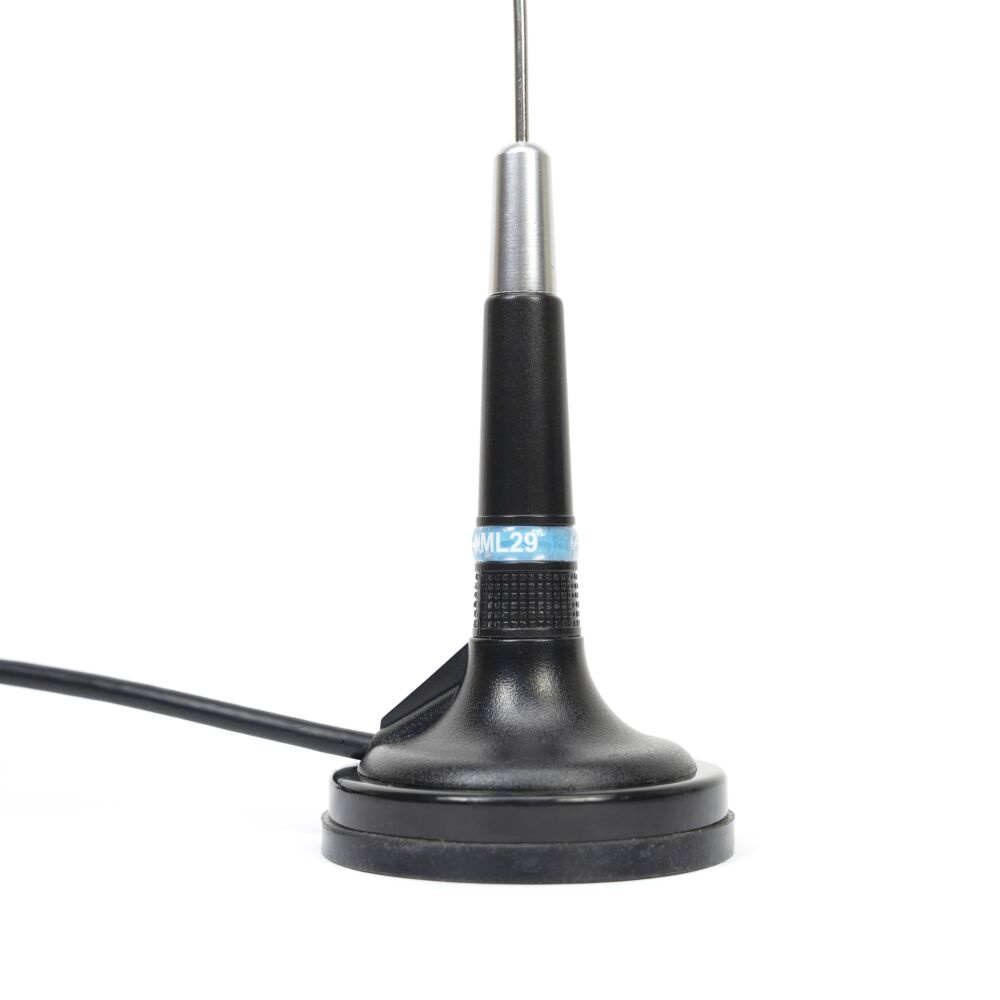

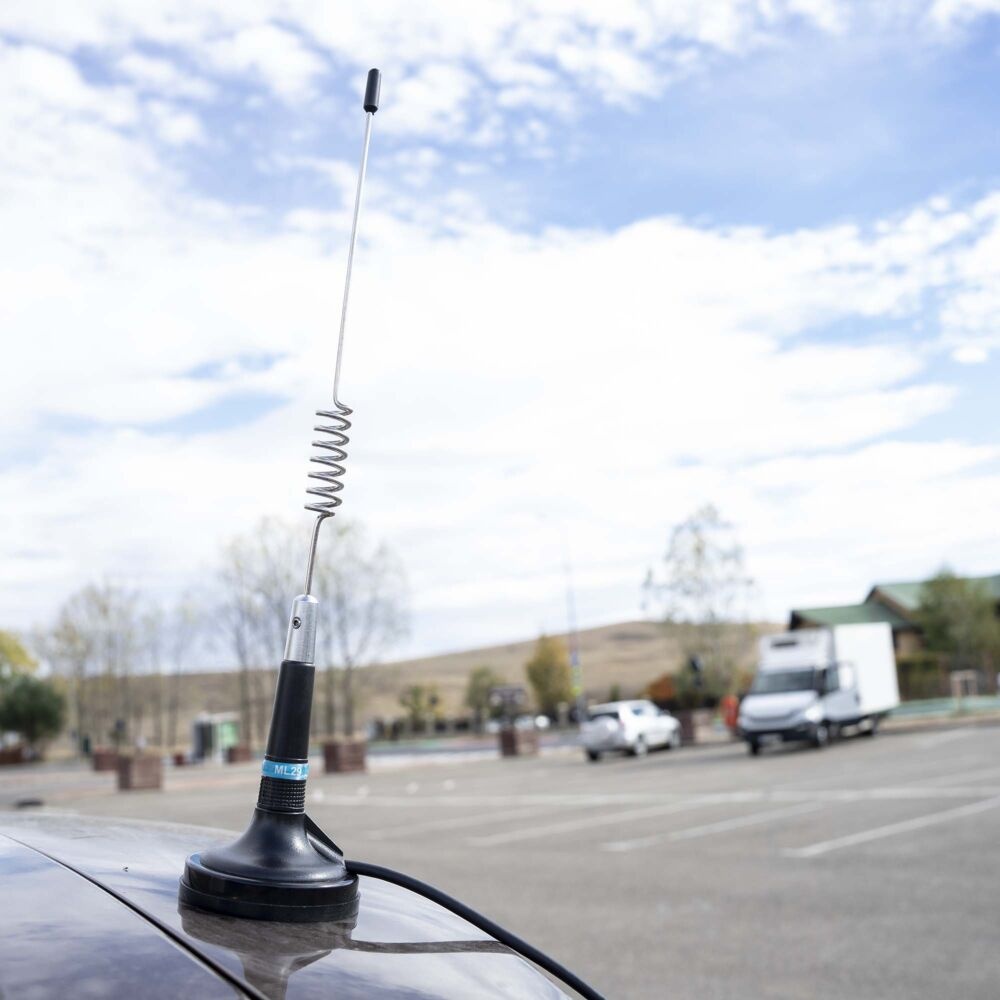

The PNI ML29 CB antenna is a discreet CB antenna with a 70 mm magnetic base specially designed for use in cars. It is extremely easy to install, either on the roof or in the boot of the vehicle.

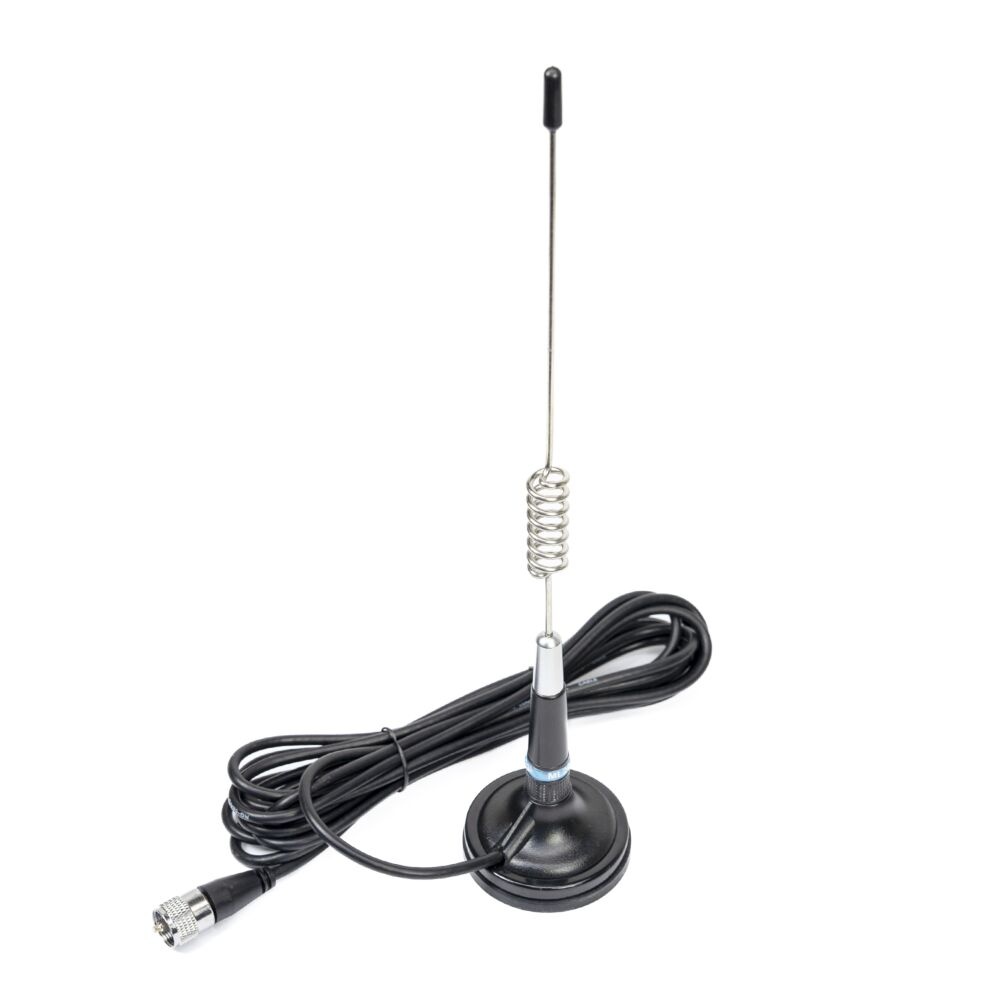

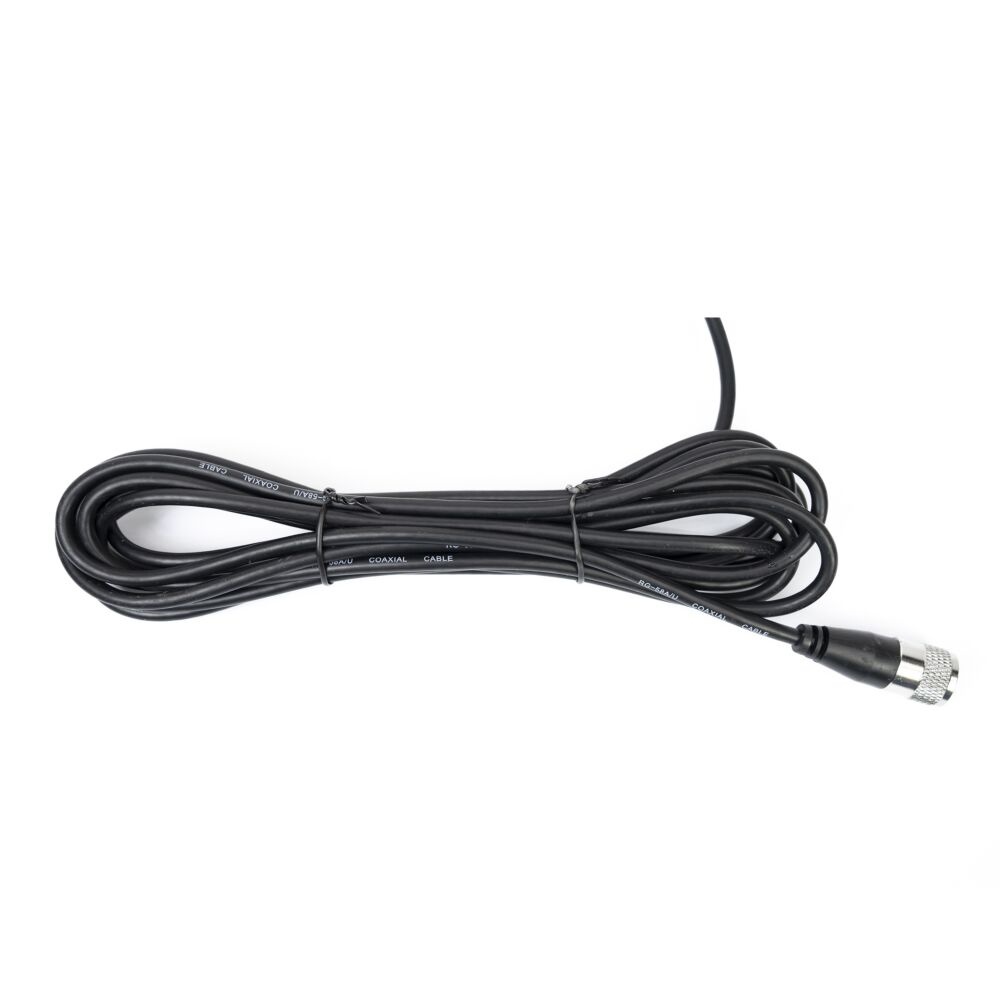

Thanks to its small dimensions, the antenna can be easily fitted and removed from the car when you're on the road or on your way home. The magnetic base antenna includes a 4-metre RG58 cable with a PL259 plug for connection to the CB radio station.

Compatible with any CB radio station, the PNI ML29 antenna is suitable for use in vehicles and offers a convenient option for communication in the 26-28 MHz frequency band.

Antenna supplied with: 1x PNI ML29, 1x 70 mm diameter magnetic base, 1x 4 metre RG58 cable with PL259 plug.

More details

19,90 € tax excl.

In stock

   3 Items

Download

Manuel PNI ML29 (EN)

219.23k

Déclaration CE ML29

435.17k

Data sheet

  • Operating frequency: 26 - 28 MHz
  • Maximum applied power: 500W
  • Minimum SWR at the centre of the band: less than 2:1
  • Tip length: 230 mm
  • Impedance: 50 ohms
  • Material: Copper, Stainless steel
  • Connector type: UHF male (PL259)
  • Cable length: 4 m
  • Weight: 250 g
  • Size: 340 x 70 x 70 mm (including magnetic base)
  • gain : >3 dBi
  • Polarisation: vertical
  • Working distance: 7 km
  • Magnetic base: 70 mm
  • Operating temperature : -26°C ~ +80°C
