CB antenna 27Mhz 4x4x Sirio New Delta 27-95 & 27-M-95 95cm strand with drilling

rating Read the review
Average rating: 5/5 Number of reviews: 1

Sirio New Delta 27-95 Mobile CB Antenna for 40/80 27 Mhz cibi channels, with helically wound fiberglass rigid whip, 95 cm, power of 100 Watts, bandwidth of ≥900 KHz with drilling mounting. The version with spring is particularly recommended for mounting on a 4x4. Available in 3 versions:

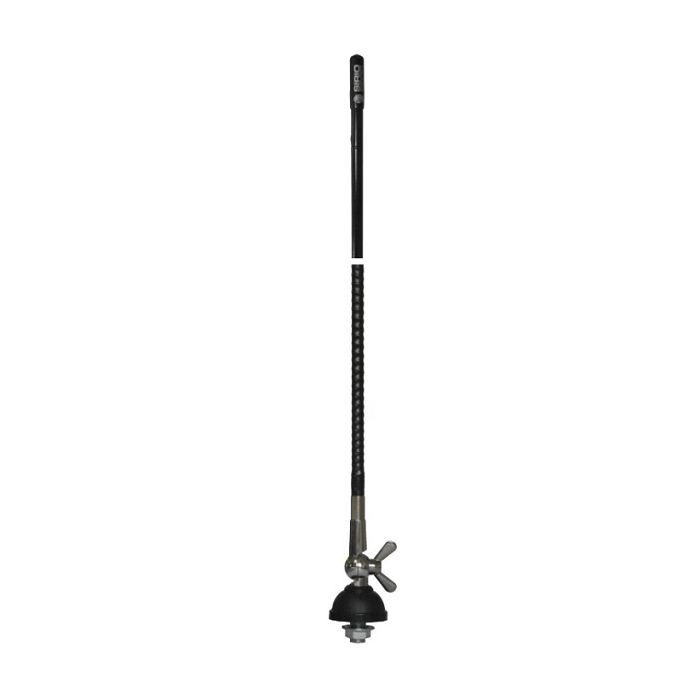

New Delta 27-95 : Rigid strand, without spring, with 4m cable N-Mount connector and bare end (PL connector optional)

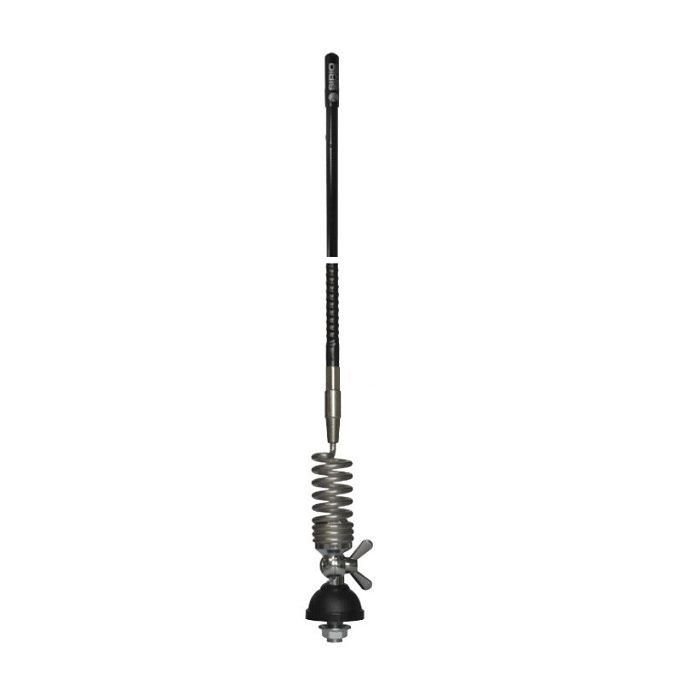

New Delta 27-M-95 (recommended 4x4): Flexible strand at the base with spring and 4m cable RG58 N-Mount connector and bare end (PL 259 connector optional)

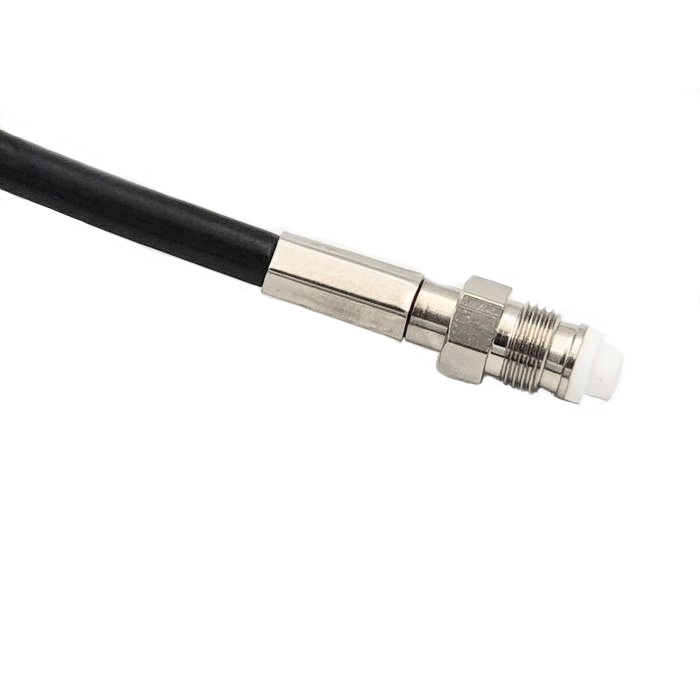

New Delta 27-M-95-FME (recommended 4x4): Flexible strand at the base, with spring and 4m RG58 cable N-Mount connector and FME connector (optional adapter)

Supplied with: 1 Sirio New Delta 27 Mobile CB Antenna, 1 RG58 cable of 4m, 1 mounting bracket, 1 screw bolt, 1 adjustment kit.

More details

39,90 € tax excl.

In stock

   3 Items

  • With spring and FME connector
  • With spring and bare end cable
  • Without spring with bare end cable

Download

Manual Sirio New Delta 27-95

313.26k

Data sheet

Type: Helical loading
Radiation: Omnidirectional
Polarization: Vertical linear
Frequency range: Tunable from 26.7 - 27.3 MHz (CB 27MHz)
Bandwidth: ≥ 900KHz @ TOS ≤2
Maximum power :
- 35 Watts (CW) continuous
- 100 Watts (CW) short duration
Cable length: 4 m in RG58 with 1 N-Mount connector and the bare end (PL-259 optional below)
Materials: Copper, Brass, Stainless steel, Fiberglass
Antenna height: 950 mm
Weight: 390 grams and 450 grams (version with spring)
Type of assembly: Drilled
