> Radio Antennas>27 MHz antennas>PST11DL single-band delta loop antenna for 11m (27 MHz) with 2 rigid elements ProSisTel

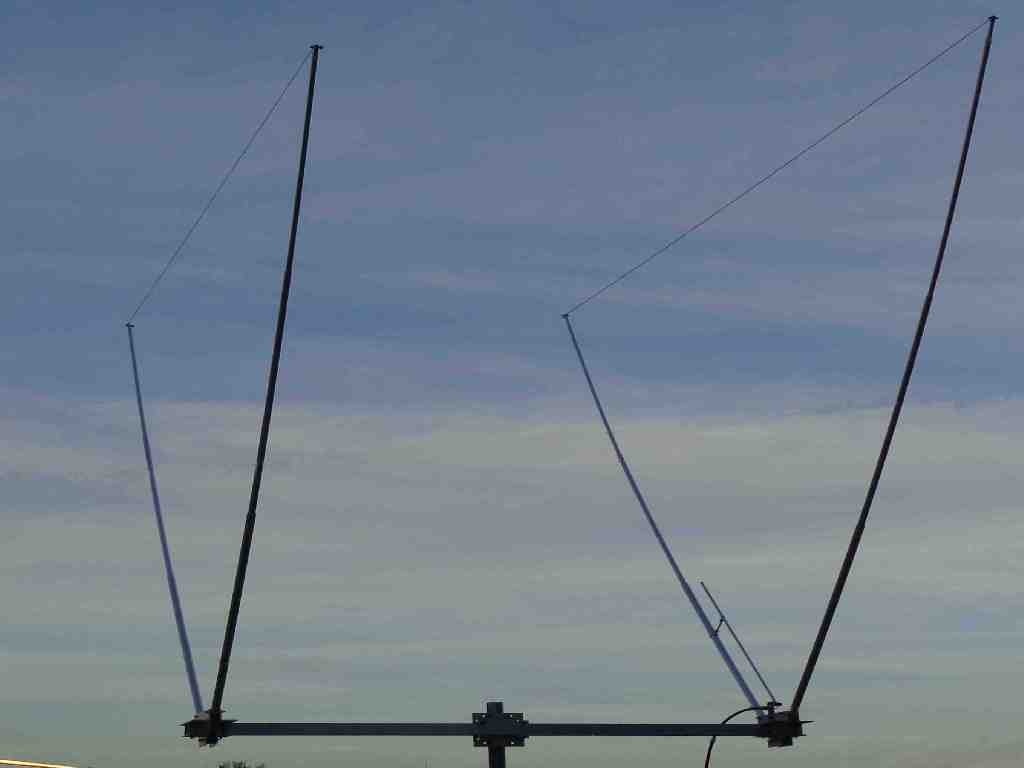

PST11DL Mono-band 11m (27 MHz) solid 2 elements delta loop antenna View larger
PRO.SIS.TEL

PST11DL-2528

New product

Italy

PST11DL single-band delta loop antenna for 11m (27 MHz) with 2 rigid elements ProSisTel

rating No review at the moment

Delta Loop mini, monoband 2 elements covering 11m.
Robust construction, earthed elements.
The gamma match coupler gives better performance in terms of impedance matching and an excellent usable bandwidth.
Its small size and light weight make it easy to use, even in confined spaces.

For optimum operation, it is recommended to mount it at a height of at least 4-5m from the ground.

More details

411,26 € tax excl.

This material is no longer available

Data sheet

Characteristics :

  • Gain = 6-8 dBd
  • Impedance 50 ohms
  • F/B = approx. 18-20dB
  • front panel => 25dB
  • VSWR <= 1 : 1 at the centre of the band, band edge within the limit of 1 : 1.8
  • Maximum power 2KW
  • Boom length = 1.3m
  • Radius of rotation = 65cm
  • Wind surface = 0.2m2
  • Maximum wind = 130 km / h
  • Weight = approx. 8kg
  • Acceptance mast 48mm (standard) or 60mm (optional)
  • Material = AL6060T6, stainless steel bolts.
