> Ham & radio equipment>CB 27Mhz >27 MHz antennas>CB antenna PNI ML70 70cm 26-30MHz 200W magnetic base 145mm
CB antenna PNI ML70 70cm 26-30MHz 200W magnetic base 145mm View larger
Previous Next

PNI France

PNI-ML70-2312

New product

CB antenna PNI ML70 70cm 26-30MHz 200W magnetic base 145mm

rating No review at the moment

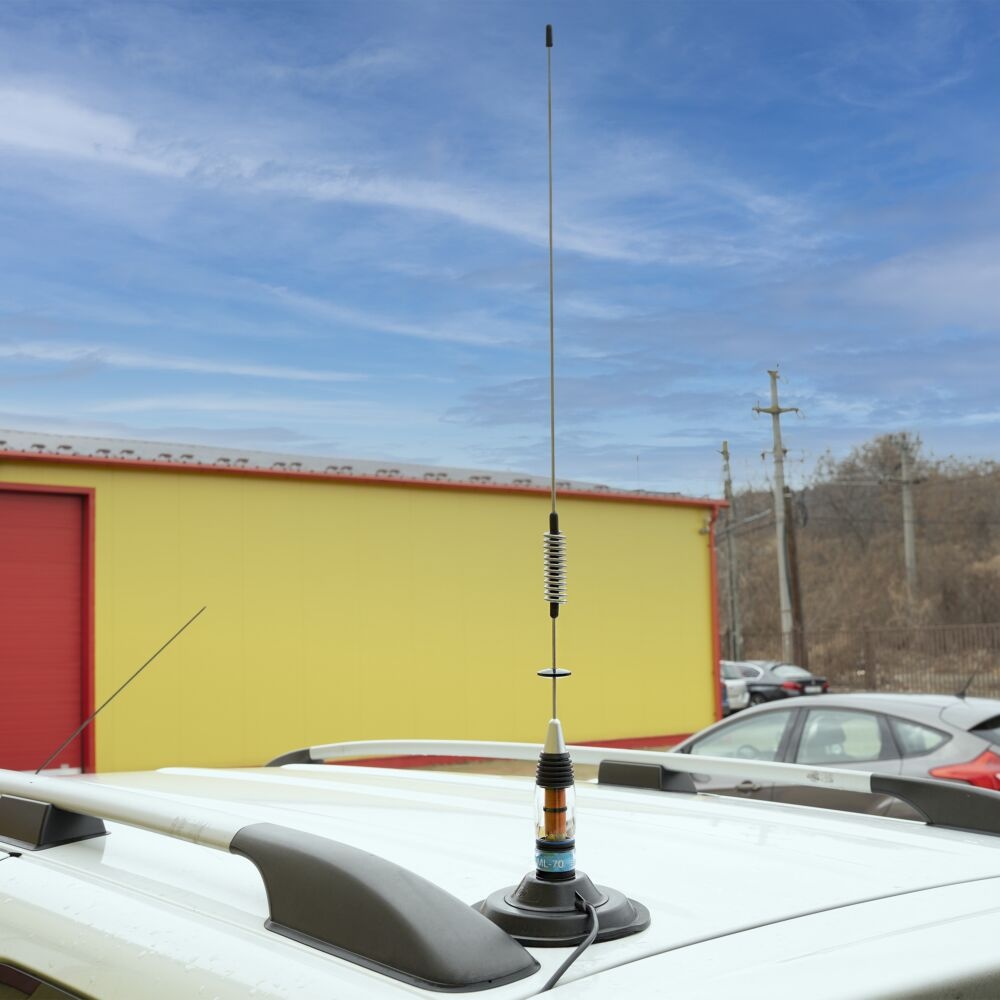

The CB PNI ML70 is an antenna with a 145 mm magnetic base specially designed for use in cars. It is extremely easy to install, either on the roof or in the boot of the vehicle.

The maximum communication range of 9 km is achievable under ideal conditions, including a perfectly calibrated antenna, an unobstructed environment, a station transmitting at the maximum legal power of 4W, and standard reception. However, the presence of obstacles such as hills, mountains, buildings or walls can considerably reduce this range.

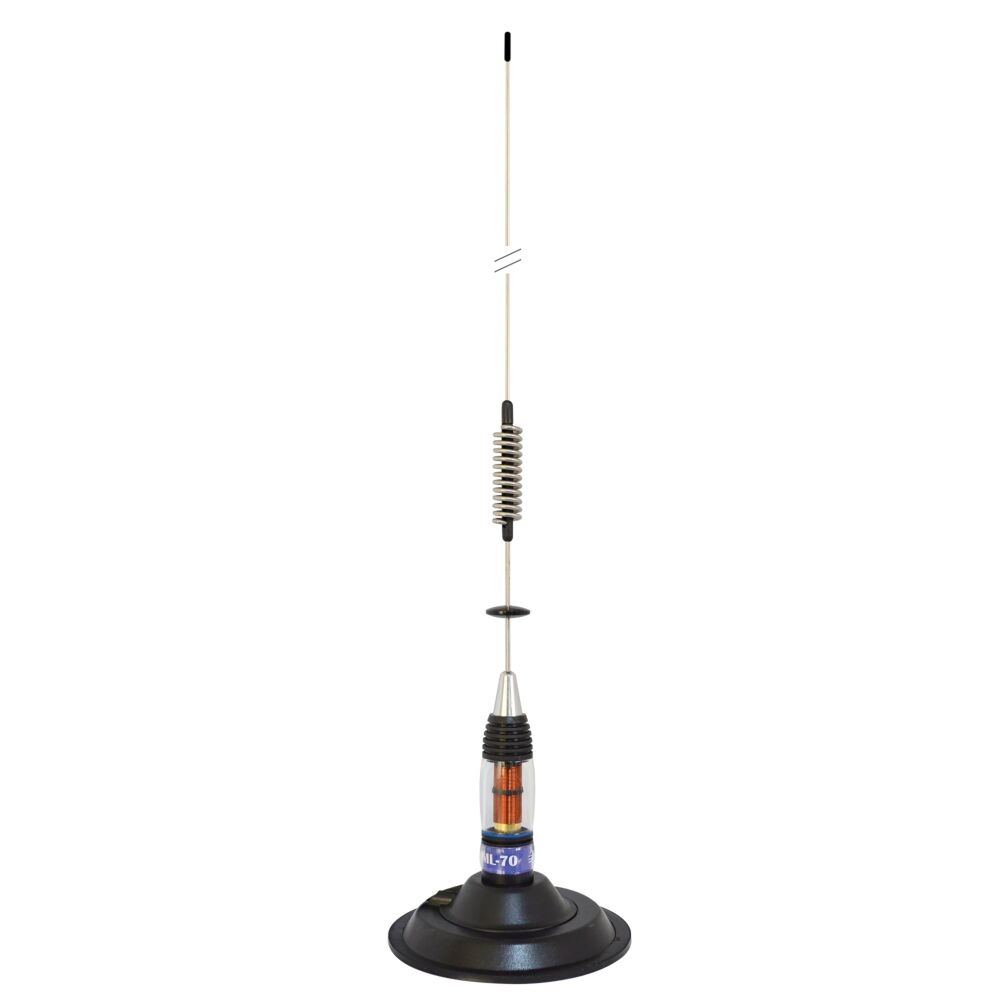

The PNI ML70 antenna is 70 cm long (including the magnetic base).

Ideal conditions for installation and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms

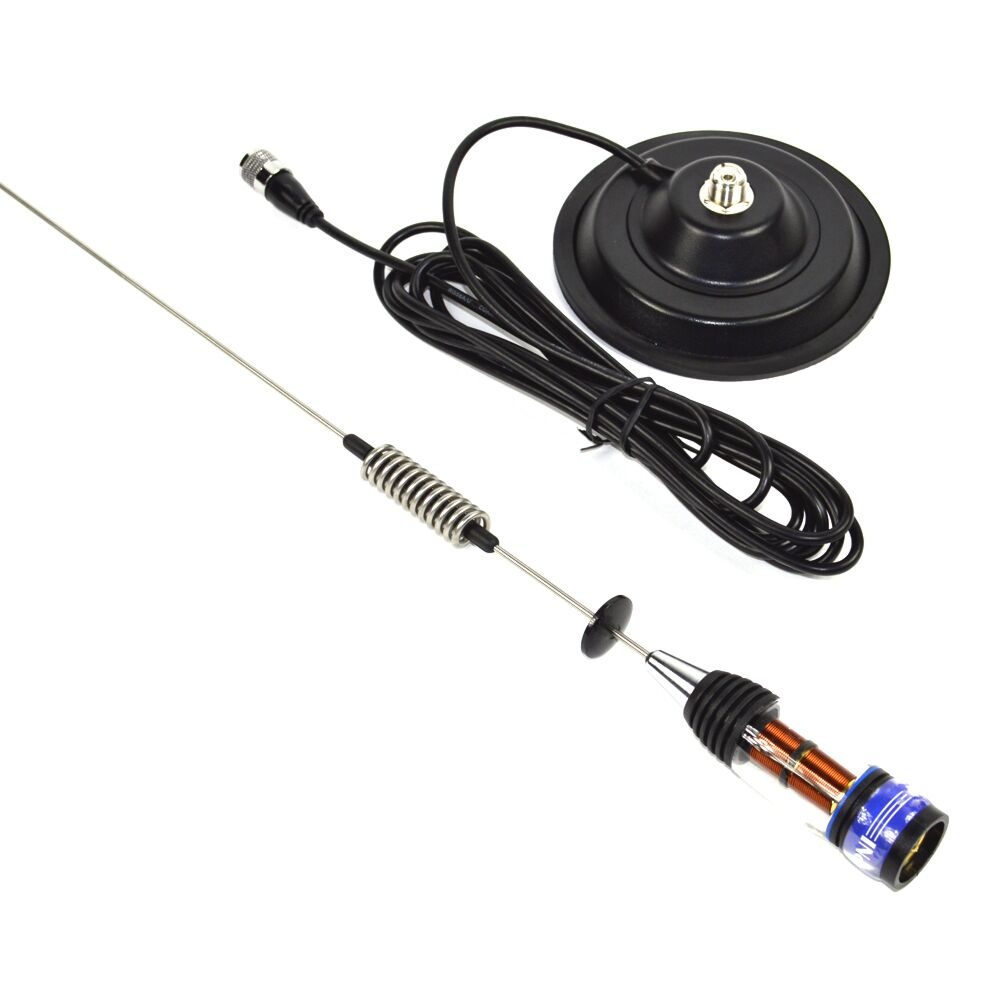

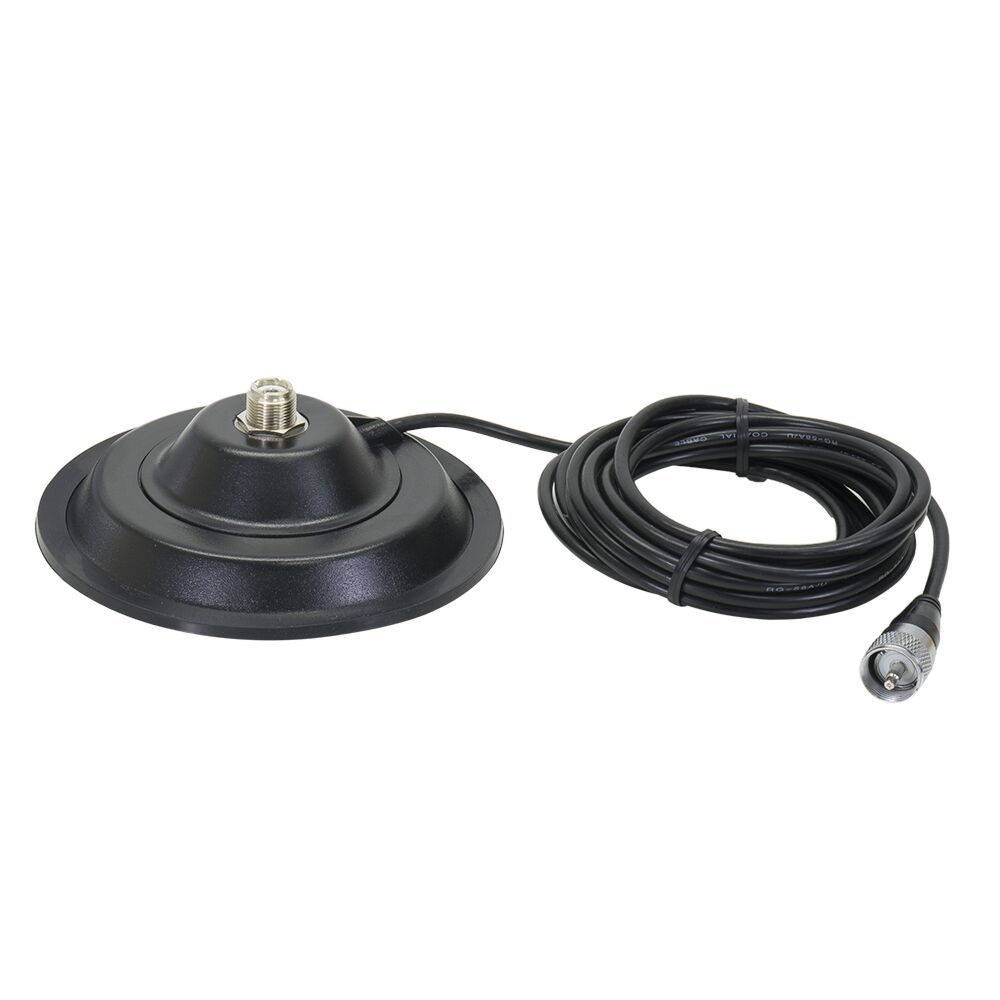

Antenna supplied with: 145 mm diameter magnetic base, 4 metre RG58 cable with PL259 plug.

More details

30,24 € tax excl.

In stock

   1 Item

Download

manuel utilisateur ML70

203.8k

Data sheet

  • Operating frequency: 26 - 28 MHz
  • Maximum applied power: 200W
  • Minimum SWR at centre of band: less than 1.2
  • Length: 70 cm (including magnetic base)
  • Impedance: 50 ohms
  • Material: Stainless steel
  • End connector: PL259
  • Hole diameter (mm): 16 mm
  • Cable length: 4m
  • Weight: 800g
  • Dimensions: 100 x 18 x 5 cm
  • Gain: 4 dBi
  • Working distance: 8km
  • Operating temperature : -26°C ~ + 60°C
  • Manufacturer's warranty: 6 months
