1090 MHz PCB passive ADS-B antenna for SDR reception

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

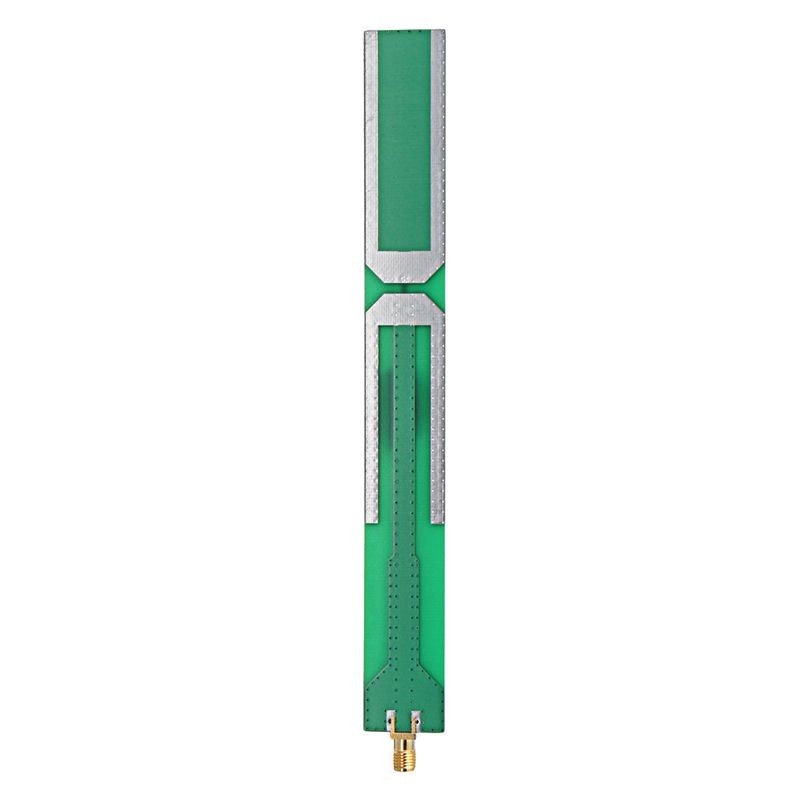

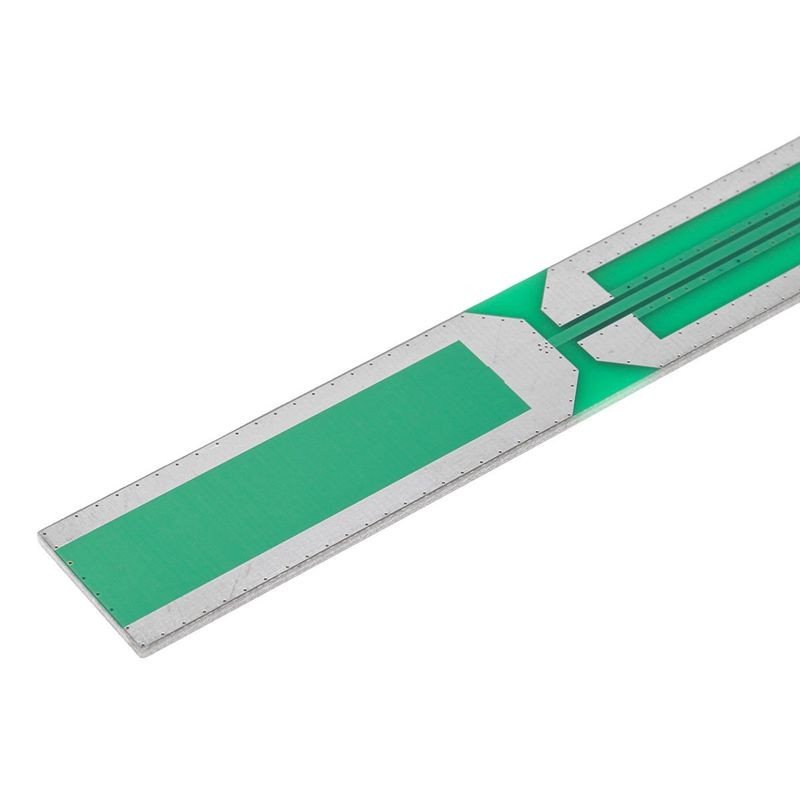

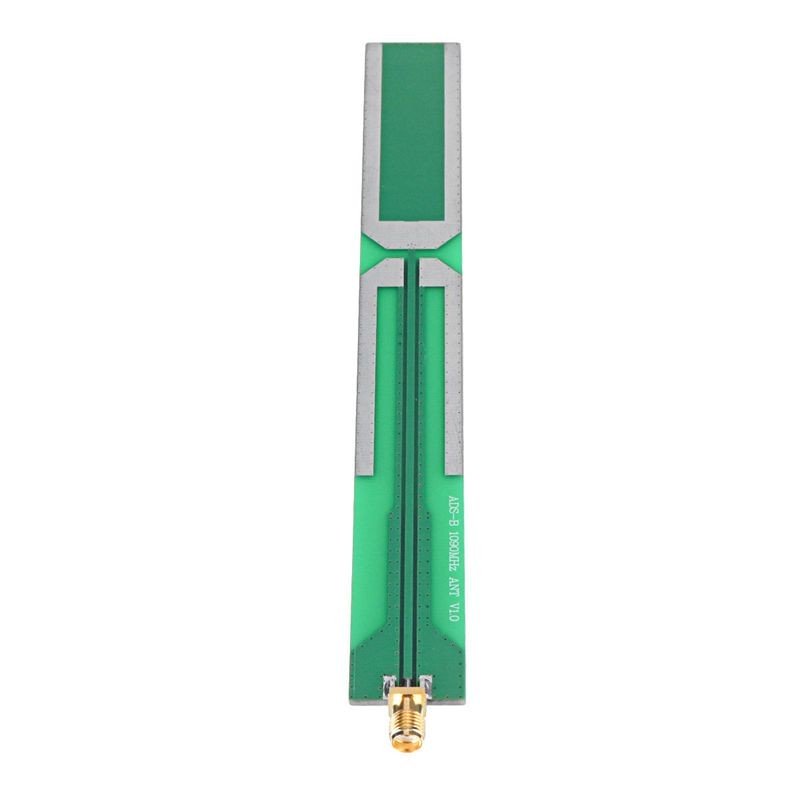

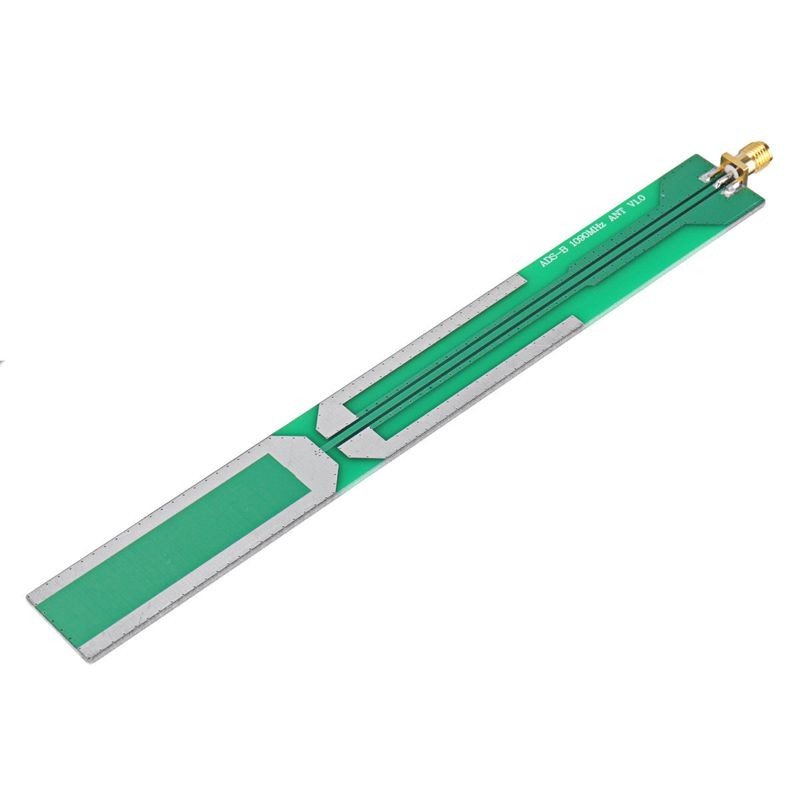

Passive omnidirectional PCB antenna for ADS-B reception on 1090 MHz, operates on RX from 1060 to 1120 MHz.

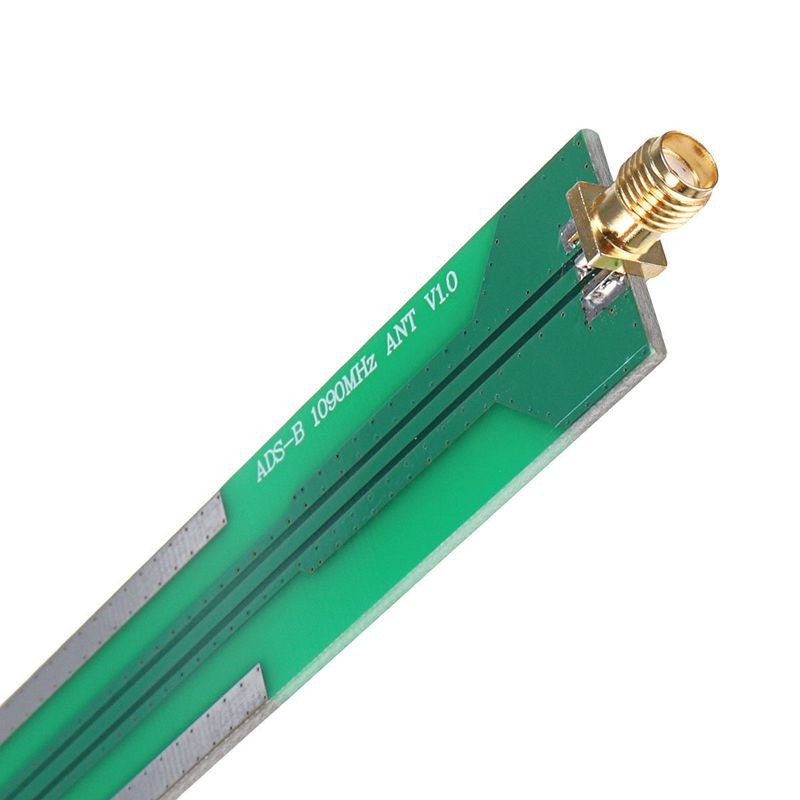

The antenna is supplied with a female SMA connector soldered to the PCB.

Optional: SMA low-loss coaxial cable and 1090MHz ADS-B filter.

More details

8,90 € tax excl.

In stock

   More than 10 Items

Estimate directly shipping costs by clicking on "Add to cart", then enter your country and zip code on the cart page.

Data sheet

ADS-B antenna specifications

Frequencies: 1090 MHz
Reception: From 1060 to 1120 Mhz

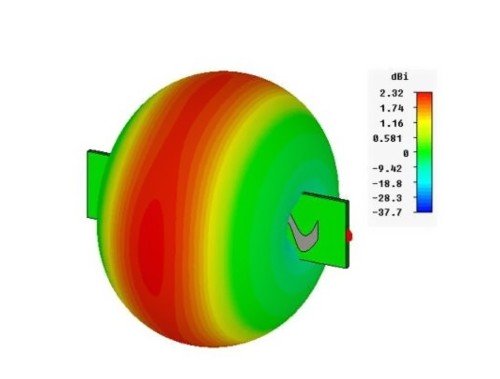

Gain: 2 dBi
Polarisation: Vertical
Directivity: Omni-directional
Impedance: 50 ohms
Dimensions: 20 x 170 mm
Weight: 60 grams
Material: Epoxy PCB plate
